120kg Forward Tilting Washer Extractor: Advanced Performance for Industrial Laundry Operations

Industrial laundry facilities require equipment that can process large volumes of textiles reliably, safely, and efficiently. Hotels, hospitals, commercial laundries, ships, dry cleaners, uniform service companies, and other large-scale operations cannot afford frequent interruptions, difficult loading procedures, or inconsistent washing results. The 120kg Forward Tilting Washer Extractor is designed to address these demands with a combination of high-capacity washing, powerful extraction, ergonomic forward tilting, durable construction, and precise control.

With a rated capacity of 120kg, a drum volume of 1,200 liters, a maximum speed of 745 rpm, and a G factor of 400, this washer extractor is built for demanding professional applications. Its forward tilting mechanism provides easier loading and unloading, while the front-tilt drain design helps shorten the unloading process. The machine is also equipped with a frequency converter that supports accurate control of washing and spinning speeds, helping operators achieve consistent results across different textile types and soil levels.

Manufactured by Jiangsu Chuandao Intelligent Equipment Co., Ltd., the machine reflects a focus on industrial laundry engineering, equipment durability, process efficiency, and OEM/ODM supply capabilities. Rather than functioning as a basic washing machine, it is engineered as an integrated production tool for facilities where throughput, operator safety, resource management, and repeatable quality are essential.

120kg Forward Tilting Washer Extractor

1. The Role of High-Capacity Washer Extractors in Modern Laundries

Large laundry facilities handle significantly greater textile volumes than residential or small commercial operations. A hotel may process bedding, towels, bathrobes, table linen, and staff uniforms every day. A hospital must wash patient garments, sheets, surgical textiles, towels, and other items under strict hygiene procedures. A shipboard laundry has to operate within limited space while processing textiles from passengers and crew. Industrial workwear services may need to clean heavily soiled garments continuously throughout multiple shifts.

In these environments, equipment selection directly affects labor costs, production speed, textile quality, utility consumption, and customer satisfaction. A machine with insufficient capacity may require too many cycles, while a machine with weak extraction performance can transfer excessive moisture to the dryer. Poor ergonomics may increase operator fatigue and injury risk. Inconsistent control systems can lead to uneven washing results, rewash requirements, and unnecessary chemical or water consumption.

A washer extractor combines two important stages of the laundry process. It washes textiles through controlled water movement, mechanical action, temperature, and chemical application. It then extracts water through high-speed drum rotation. By completing both stages in one machine, it reduces manual handling and prepares the load for faster drying or finishing.

The 120kg forward tilting model is particularly suitable for facilities that need high output but also want to improve the practical workflow around the machine. Its capacity allows operators to process substantial loads in each cycle, while its forward tilting structure makes the loading and unloading stages more accessible than those of a fixed machine.

2. Main Technical Specifications

The following specifications describe the primary configuration of the 120kg Forward Tilting Washer Extractor.

Specification	Value	Specification	Value
Model	SHS-2120T	Standard	SHS-2120T
Rated capacity	120kg	Drum volume	1,200 liters
Voltage	380V	Power	15kW
Maximum speed	745 rpm	G factor	400
Drum diameter	1,310mm	Drum depth	950mm
Steam pressure	0.4–0.6MPa	Water inlet pressure	0.2–0.4MPa
Steam pipe	DN25	Water inlet pipe	DN50
Hot water pipe	DN50	Drain pipe	DN1110 as listed
Tilting angle	15 degrees	Noise level	≤70dB
Approximate weight	3,830kg	Dimensions	2,100 × 1,850 × 2,350mm

Before installation, buyers should confirm utility requirements, pipe dimensions, electrical configuration, floor loading, drainage design, access routes, and local compliance requirements with the supplier. The technical data should also be reviewed against the final project drawings, especially where multiple machines are installed in a production line.

3. Forward Tilting Design for Easier Material Handling

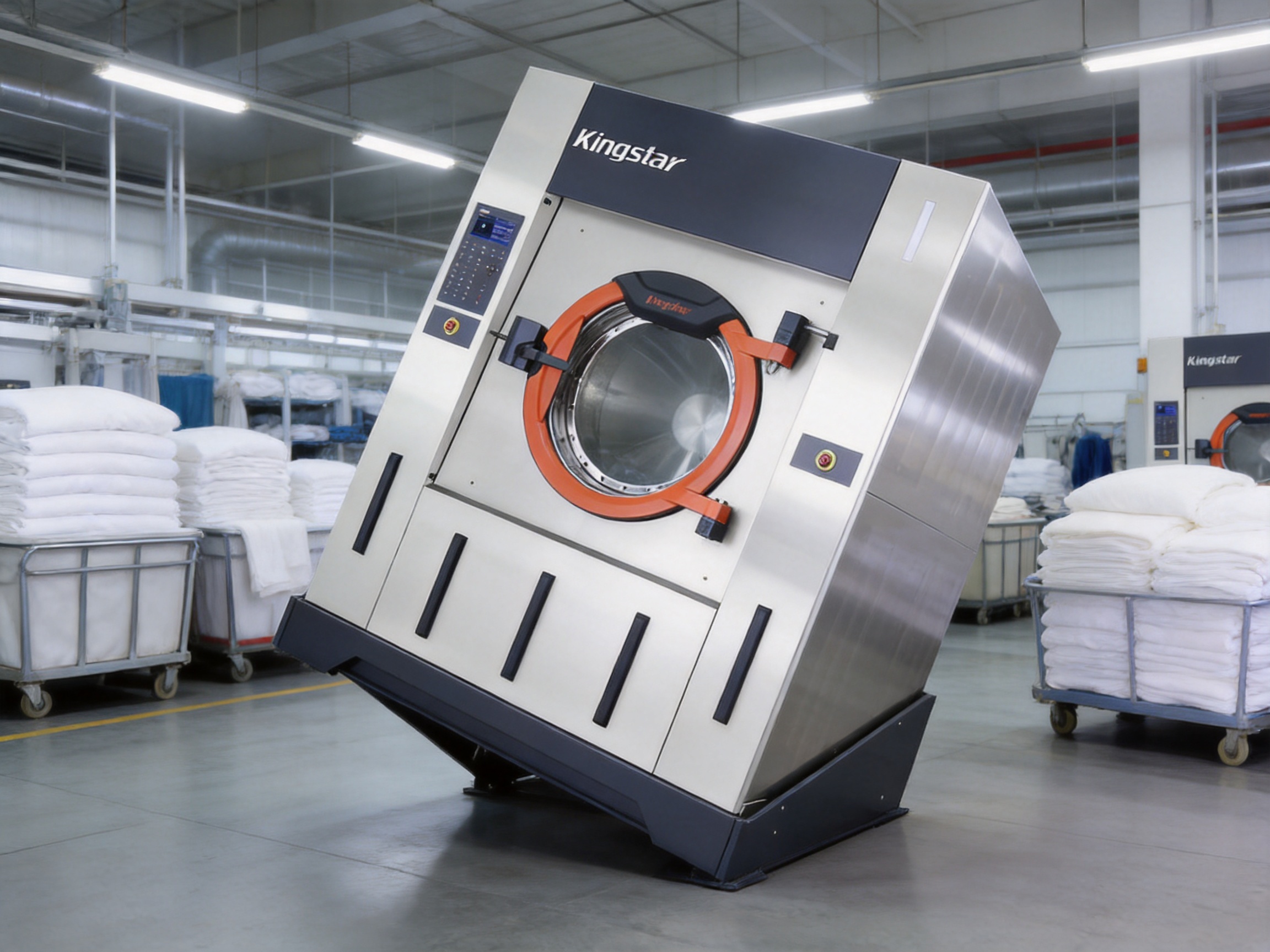

The most distinctive feature of this model is its forward tilting structure. Conventional fixed washer extractors can require operators to reach deeply into the drum, lift heavy wet textiles, or use additional handling tools. These actions become increasingly difficult when the machine is installed in a high-volume laundry and operated throughout the day.

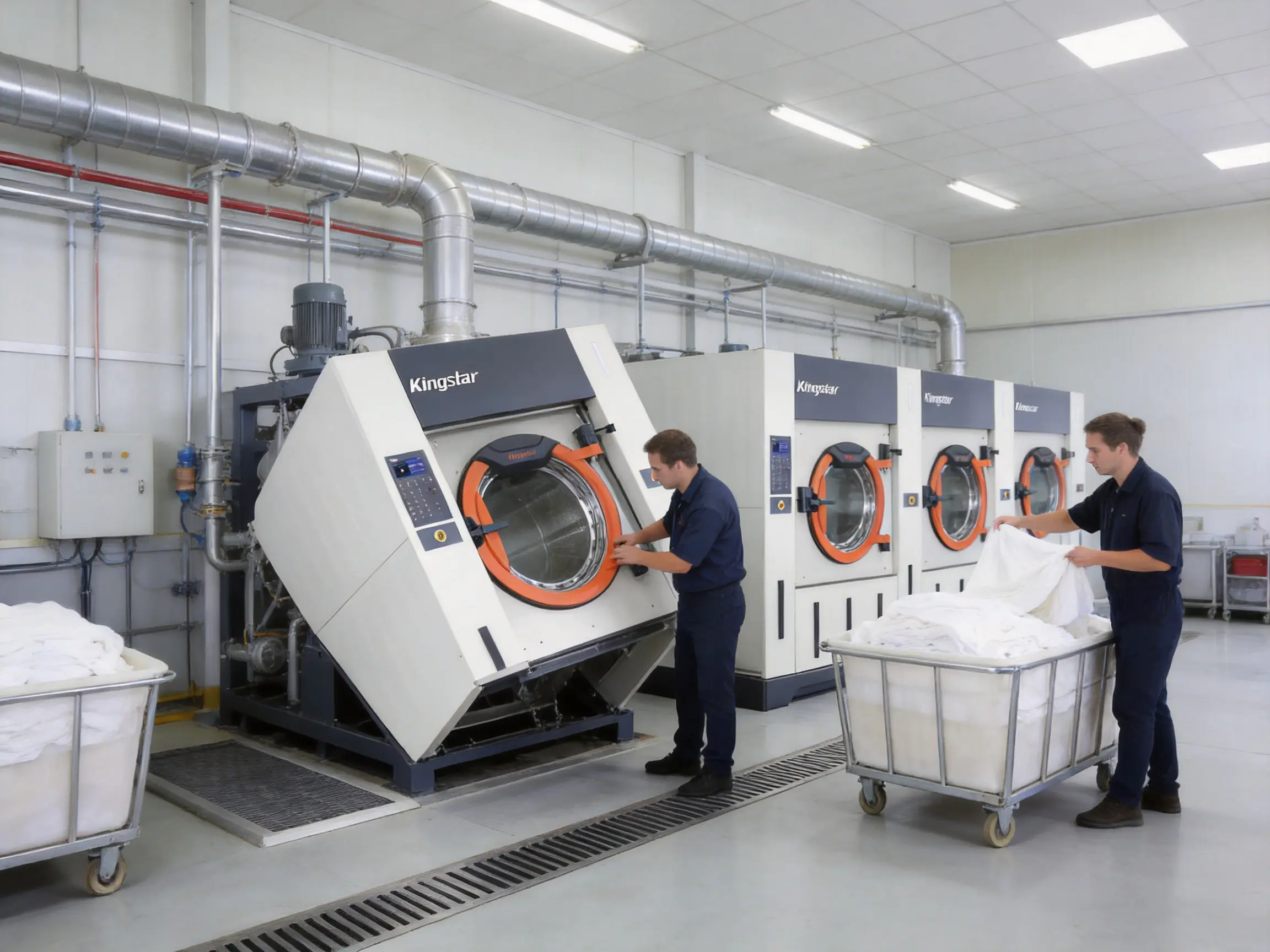

By tilting forward, the drum opening moves into a more accessible position. Operators can load textiles with less stretching and unload processed goods more naturally. This is particularly valuable for bulky items such as blankets, large sheets, towels, uniforms, and healthcare textiles that can become heavy after absorbing water.

The forward tilt also supports a more organized production workflow. After extraction, the operator can bring the drum into the unloading position and transfer textiles to carts, conveyors, dryers, or finishing equipment with reduced manual effort. In a well-planned laundry, this can help create a smoother movement of goods from washing to drying.

Ergonomics are not simply a matter of convenience. Repetitive bending, reaching, twisting, and lifting can contribute to operator fatigue and workplace injuries. Equipment that reduces these movements can support safer working practices and potentially improve staff retention and productivity. The forward tilting arrangement therefore provides an advantage beyond the machine’s washing performance.

Front-Tilt Drain and Rapid Unloading

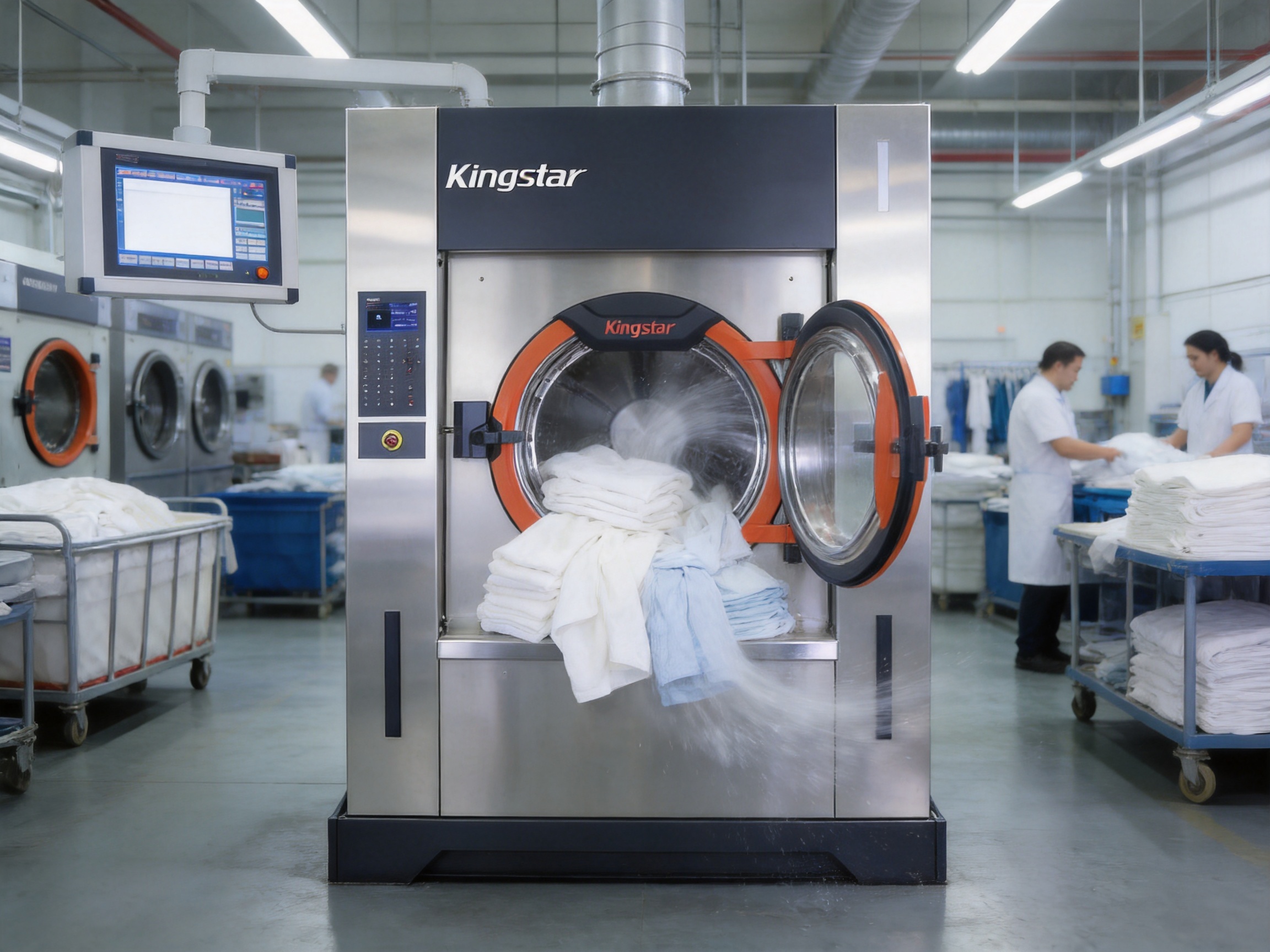

The front-tilt drain design is intended to make unloading faster and more efficient. The supplied product information indicates that the complete unloading process can take approximately 30 seconds under suitable operating conditions. Actual times will vary according to the textile type, load size, operator procedure, and downstream equipment, but the design is clearly intended to minimize delays between cycles.

Shorter unloading times can make a meaningful difference in a busy laundry. If an operator spends less time removing each load, more time is available for inspection, sorting, transfer, and preparation of the next cycle. Over a full shift, small time savings can accumulate into higher throughput without increasing the number of machines.

Rapid unloading is also beneficial for wet textiles that should not remain inside the drum longer than necessary. Prompt transfer can help maintain workflow discipline and reduce bottlenecks near the washer extractor.

4. High-Capacity Washing and Extraction Performance

The 120kg rated capacity and 1,200-liter drum volume make this machine suitable for substantial industrial loads. The large drum is designed to provide adequate space for textile movement, allowing water, detergent, heat, and mechanical action to reach the load during the wash process.

Capacity must always be matched to textile density and the specific laundry program. Heavy items, tightly woven fabrics, and absorbent goods may require different loading practices from lightweight linens. Operators should follow the recommended loading ratio and avoid overloading the drum. Proper loading protects textile quality, supports balanced operation, and allows the washing solution to circulate effectively.

The machine’s maximum speed of 745 rpm and G factor of 400 support strong moisture extraction. A higher extraction force generally leaves less residual moisture in the textiles at the end of the wash cycle. This can reduce the time and energy required by subsequent dryers, particularly when processing towels, sheets, uniforms, and other materials that retain significant water.

Extraction performance is closely connected to overall laundry economics. Drying is often one of the most energy-intensive stages in a laundry operation. When more water is removed mechanically, the dryer does not need to evaporate as much moisture. This can shorten drying cycles, increase dryer availability, and help lower energy consumption per kilogram of finished textile.

The extraction stage must also be controlled carefully. Load balance, drum condition, foundation stability, and correct operating procedures all influence vibration and extraction results. The robust industrial structure and precision control system are intended to support stable operation when the machine is properly installed and maintained.

5. Frequency Converter for Precise Speed Control

The integrated frequency converter is an important performance feature. It enables accurate regulation of drum speed during different stages of the washing and extraction process. Instead of relying on a limited number of fixed operating speeds, the machine can use controlled speed changes to suit the requirements of the selected program.

Lower or moderate speeds can support washing actions in which textiles must be saturated, moved, and exposed to the cleaning solution. Higher speeds can be used during extraction to remove water after rinsing. By adjusting the speed profile, operators can develop programs for different textile types and soil conditions.

Precise speed control can also help protect delicate materials. Not every load should be treated with the same mechanical action. Healthcare linens, industrial workwear, hospitality textiles, and delicate fabrics may have different requirements. A programmable speed system gives the operator greater flexibility to balance cleaning power, textile protection, and extraction performance.

The frequency converter also contributes to smoother machine operation. Controlled acceleration and deceleration can reduce abrupt changes in drum movement, helping support stable operation and reducing unnecessary mechanical stress. Over time, this can contribute to equipment reliability when combined with correct maintenance and appropriate load management.

Flexible Program Management

Industrial laundry operations often process several textile categories in the same day. A hotel may alternate between white sheets, colored towels, uniforms, and delicate guest items. A hospital may require separate procedures for heavily soiled goods, general linen, and heat-sensitive textiles. The ability to adjust washing and spin behavior is therefore a practical advantage.

Operators can select or configure cycles based on water level, temperature, agitation, rinse sequence, and spin speed. These adjustments help establish repeatable processes rather than depending entirely on manual judgment. Consistency is especially important when the laundry must meet internal quality standards or customer specifications.

Programmable control can also help reduce rewash rates. When the same textile category is processed using a consistent program, the facility can monitor results, make adjustments, and improve the process over time. Reduced rewash means lower consumption of water, detergent, energy, labor, and machine time.

6. Industrial Construction for Demanding Environments

Industrial laundry equipment operates under conditions that are substantially more demanding than those found in domestic applications. A commercial machine may run multiple cycles per day, six or seven days per week. It must withstand repeated exposure to water, steam, detergents, chemicals, heat, vibration, and heavy textile loads.

The 120kg washer extractor is built around a heavy-duty industrial concept. Its approximate weight of 3,830kg reflects a substantial machine structure intended for stable operation. The large dimensions and industrial mass must be considered during site planning, but they also support the machine’s suitability for continuous professional use.

Durable drums, industrial-grade drive components, structural supports, bearings, and control systems are essential for reliable operation. The machine is designed to provide dependable service in commercial laundry rooms, industrial laundry plants, dry cleaners, ships, and similar facilities. Its construction is intended to reduce the effects of repeated operating cycles and demanding production schedules.

Reliability is not limited to the use of strong materials. It also depends on engineering coordination. The drum, drive system, frame, tilting structure, controls, drainage, and safety systems must work together as a complete unit. A machine that is powerful but poorly integrated may create vibration, maintenance difficulties, or operating instability. Industrial equipment manufacturing therefore requires attention to the relationship between every major assembly.

7. Manufacturing Strengths and Engineering Approach

Jiangsu Chuandao Intelligent Equipment Co., Ltd. focuses on the development and supply of industrial laundry machinery, including washing machines, washer extractors, commercial dryers, and related equipment. Its product positioning serves customers that require professional capacity, dependable operation, and solutions adapted to different laundry environments.

The manufacturing strength behind a large washer extractor begins with product engineering. The company’s approach combines high-capacity mechanical design, controlled drum movement, tilting functionality, industrial electrical systems, and application-oriented configuration. This type of equipment must be engineered not only to wash textiles but also to integrate with the practical routines of a complete laundry facility.

Heavy-Duty Structural Engineering

A large-capacity washer extractor requires a stable framework capable of supporting the drum, water, textiles, and dynamic forces generated during spinning. Structural engineering must account for static loading, rotating mass, acceleration, deceleration, and repeated production cycles. The substantial machine weight and industrial design are intended to provide a stable foundation for these operating demands.

Manufacturing quality is especially important in the alignment of the drum, drive assembly, tilting mechanism, and supporting structure. Accurate assembly helps maintain smooth operation and supports the expected performance of the extraction system. It can also simplify inspection and servicing over the product life cycle.

Integrated Electrical and Control Systems

The use of a frequency converter demonstrates the importance of coordinated electrical and mechanical control. Industrial laundry equipment must manage water, temperature, drum speed, extraction, drainage, and tilting operations in a logical sequence. The control architecture is therefore a central part of the machine rather than an accessory.

Careful electrical assembly, control-panel organization, wiring quality, and component selection all influence long-term reliability. A clear and practical control interface can help operators select the correct process and reduce errors. For commercial customers, repeatable operation is essential because even a small process inconsistency can affect a large number of finished textiles.

Manufacturing Inspection and Functional Testing

Large industrial machines should be checked at multiple stages of production. Typical quality activities may include dimensional inspection, component verification, electrical testing, control-system checks, drainage inspection, tilting-function verification, and operational testing before shipment. These procedures help identify assembly issues before the machine reaches the customer site.

Functional testing is especially important for a forward tilting washer extractor because the tilting action must operate in coordination with the drum, door, drain, controls, and safety arrangements. The machine must be assessed as an integrated system. Testing should verify that the machine performs its intended functions smoothly and that the operating sequence is clear for the end user.

OEM and ODM Support

The manufacturer offers OEM and ODM commercial washer extractor services. This is useful for distributors, laundry equipment contractors, hospitality groups, healthcare projects, and other buyers that need product adaptations or a consistent supply relationship.

OEM cooperation may involve customer-specific labeling, documentation, configuration, or packaging requirements. ODM cooperation can extend further into product adaptation, control preferences, technical options, and project-oriented design. The exact scope depends on the order and should be confirmed during technical discussions.

For international buyers, supplier capability is measured not only by the machine itself but also by communication, documentation, shipping preparation, installation guidance, spare-parts support, and after-sales service. A manufacturer with experience in industrial equipment can help customers coordinate these areas before delivery.

8. Advantages Compared with Conventional Fixed Washer Extractors

The main competitive advantage of this model is the integration of high capacity with forward tilting. Many fixed washer extractors can provide strong washing performance, but they may require more manual effort during loading and unloading. The forward tilting structure addresses this operational issue directly.

Another advantage is the combination of extraction capability and programmable speed management. A washer extractor is more valuable when it can produce both effective cleaning and low residual moisture. The 400 G factor supports water removal, while the frequency converter provides control over the speed profile.

The machine also offers a high level of suitability for large commercial environments. Its 120kg capacity is large enough for industrial production while remaining appropriate for facilities that do not require the much greater capacity of the largest continuous laundry systems. This makes it a practical option for many mid-sized and large laundry rooms.

The forward tilt can also reduce dependence on additional lifting equipment for routine unloading. While carts, conveyors, and textile handling systems may still be beneficial, improved drum access can simplify the layout and reduce unnecessary manual movement.

Noise performance is another consideration. The listed noise level is no greater than 70dB under the specified conditions. Actual sound levels depend on installation, floor structure, load balance, surrounding equipment, and building acoustics, but the stated figure indicates attention to the operating environment.

Operational Comparison

Evaluation Area	Conventional Fixed Washer Extractor	120kg Forward Tilting Washer Extractor
Loading and unloading	May require deeper reaching and more manual handling	Forward tilt improves access to the drum
Production capacity	Depends on model configuration	Rated capacity of 120kg per cycle
Moisture removal	Varies according to extraction speed and G factor	745rpm maximum speed and 400 G factor
Speed adjustment	May offer limited fixed-speed control	Frequency converter supports precise speed management
Workflow	May require more time for manual unloading	Front tilting supports rapid transfer of processed textiles
Application range	Depends on design and capacity	Suitable for industrial laundries, hospitals, hotels, ships, and dry cleaners

This comparison does not mean that every fixed washer extractor is unsuitable for industrial use. Many conventional machines provide dependable service. However, the forward tilting model combines features that specifically target labor efficiency, accessibility, extraction performance, and high-volume production.

9. Applications Across Multiple Industries

Hotels and Resorts

Hotels and resorts need reliable equipment for bed linen, towels, table linen, robes, uniforms, and other hospitality textiles. These goods are often processed in large batches and must be returned to service quickly. The 120kg capacity can help reduce the number of cycles needed for daily linen production.

Strong extraction is particularly valuable in hospitality laundry. Towels and bedding retain considerable moisture, and improved water removal can help shorten dryer operation. The forward tilting function also supports easier handling for staff who repeatedly process heavy wet loads.

Hospitals and Healthcare Facilities

Hospitals require controlled and repeatable washing procedures. Different categories of healthcare textiles may require different programs, temperatures, rinse steps, or extraction settings. The programmable control system allows operators to tailor processes according to the textile category and facility procedures.

Hospitals also place a high value on operational safety and hygiene workflow. Reducing unnecessary manual contact and improving the movement of textiles from washer to dryer can support a more organized laundry process. Facilities must, of course, combine the machine with validated procedures, suitable detergents, appropriate disinfection methods, and local healthcare laundry requirements.

Commercial Laundry Services

Commercial laundry companies serve multiple customers and must manage different textile types, soil levels, and delivery schedules. Their equipment must be versatile enough to process hotel linen, restaurant textiles, uniforms, workwear, and household items while maintaining reliable output.

The 120kg washer extractor can support a production-oriented workflow by combining high load capacity, flexible speed control, and fast unloading. These characteristics are useful when a commercial laundry needs to maximize the number of completed loads during a shift.

Ships and Marine Laundry Rooms

Ships have unusual laundry requirements. Space is limited, access routes can be challenging, and equipment must be selected carefully for the available room, utilities, and operational conditions. A large washer extractor can help marine operators process textiles efficiently without relying on numerous smaller machines.

Before installation on a vessel, buyers should confirm dimensions, door clearances, floor loading, drainage, electrical requirements, vibration considerations, and any applicable marine standards. The manufacturer can provide project-specific technical information for evaluation.

Dry Cleaners and Textile Service Facilities

Many dry cleaners and textile service companies also process washable goods. A high-capacity washer extractor can complement dry-cleaning machinery by handling washable workwear, uniforms, linens, towels, and other commercial textiles.

The machine’s adjustable speed and high extraction capability make it suitable for facilities that process a changing range of materials. Operators can select appropriate programs instead of applying the same mechanical action to every load.

10. Efficiency Benefits for Laundry Owners

Purchasing a high-capacity washer extractor is a long-term operational decision. The purchase price is only one part of the cost. Owners must also consider labor, water, steam, electricity, detergent, maintenance, downtime, replacement parts, and the productivity of connected dryers and finishing equipment.

The 120kg machine can support efficiency in several ways. First, its large capacity allows more textiles to be processed per cycle. Second, the high extraction force can reduce moisture before drying. Third, the frequency converter provides controlled operation for different loads. Fourth, the forward tilt can reduce the labor time associated with unloading and textile transfer.

Water efficiency depends on the selected program, load size, textile type, water levels, rinsing requirements, and operator practices. Energy consumption depends on water temperature, steam use, extraction performance, cycle time, and the efficiency of connected equipment. The machine’s design can support efficient operation, but the final result depends on the complete laundry process.

For accurate evaluation, a laundry owner should calculate the cost per kilogram processed. Useful data includes kilograms washed per shift, average cycle duration, water consumption, steam consumption, electrical use, residual moisture after extraction, labor time per load, and rewash percentage. Comparing these figures before and after installation can demonstrate the machine’s actual business value.

11. Installation and Facility Planning

Because this is a large industrial machine, installation planning should begin before delivery. The listed dimensions are approximately 2,100mm in length, 1,850mm in width, and 2,350mm in height. The machine weighs approximately 3,830kg. The building must therefore be able to accommodate both the machine footprint and the required floor loading.

Access routes should be checked carefully. Doorways, loading docks, elevators, turning areas, ramps, and ceiling heights must be sufficient for transporting the machine to its final position. Customers should also allow working space around the machine for operation, inspection, maintenance, and textile movement.

The listed utility requirements include a 380V electrical supply, DN25 steam piping, DN50 water inlet piping, DN50 hot-water piping, and the specified drain connection. Steam pressure is listed at 0.4–0.6MPa, while water inlet pressure is listed at 0.2–0.4MPa. These values should be confirmed against the final project configuration and local utility conditions.

Drainage design is particularly important. A 120kg washer extractor can discharge a large volume of water, and the drainage system must be able to handle the flow without backing up. Drain lines should be properly sized, installed with appropriate slope where required, and positioned to allow inspection and cleaning.

Electrical installation should be performed by qualified personnel. The power supply, grounding, protective devices, isolation arrangements, and control wiring must comply with applicable regulations. Steam and hot-water connections should also be installed by competent technicians familiar with industrial laundry equipment.

12. Maintenance and Service Considerations

Regular maintenance is essential for preserving the machine’s performance and extending its service life. Operators should follow the supplier’s maintenance schedule and keep records of inspections, repairs, component replacement, and unusual operating conditions.

Daily checks may include inspecting the door and seal, confirming that the drum is clear of foreign objects, observing water and steam connections, checking for leaks, and ensuring that drainage is unobstructed. Operators should also report unusual noise, vibration, odor, temperature, or control behavior promptly.

Periodic maintenance may involve checking bearings, drive components, electrical connections, safety devices, tilting mechanisms, valves, hoses, filters, and structural fasteners. The frequency of these checks depends on operating hours, load type, water quality, chemical exposure, and site conditions.

Load balance is an important part of maintenance and safe operation. Overloading or unevenly distributing textiles can increase stress on the drum, drive system, bearings, and supporting structure. Correct loading also improves washing results and extraction efficiency.

Water quality should be considered as well. Hard water can contribute to scale formation in heating and water-handling components. Appropriate water treatment and periodic descaling may help maintain efficiency. Detergent and chemical dosing should follow supplier guidance to avoid excessive corrosion, textile damage, or unnecessary residue.

When purchasing from an international supplier, customers should discuss spare-parts availability, technical documentation, troubleshooting procedures, remote support, commissioning, and technician training. A well-organized service plan helps reduce downtime and protects the value of the investment.

13. Safety and Operator Training

Industrial laundry equipment should be operated only by trained personnel. Operators need to understand loading limits, program selection, door operation, emergency procedures, tilting controls, drainage, chemical handling, and lockout procedures for maintenance.

The forward tilting feature can improve ergonomics, but operators should still maintain safe body positioning and avoid placing hands or tools in moving areas. The drum must be fully stopped before loading, unloading, inspection, or maintenance. Tilting operations should be performed only in the approved sequence.

Operators should never bypass safety devices or operate the machine with damaged doors, guards, electrical components, hoses, or structural parts. Any unusual vibration or unexpected movement should be reported immediately. Maintenance personnel should isolate electrical, steam, water, and other energy sources before beginning service work.

Training should include both normal operation and emergency response. New employees should be supervised until they demonstrate that they can operate the machine safely and consistently. Clear operating instructions near the machine can further reduce errors, especially in facilities with multiple shifts or multilingual teams.

14. Why Choose This Model for a New Laundry Project?

The 120kg Forward Tilting Washer Extractor is a strong choice for a laundry project that needs a combination of capacity, extraction, accessibility, and industrial durability. Its design addresses several common production challenges rather than focusing on only one performance characteristic.

For owners, the main value lies in the connection between individual features. The 120kg load capacity supports high throughput. The 745rpm maximum speed and 400 G factor support moisture removal. The frequency converter supports program flexibility. The forward tilting structure improves handling. The heavy-duty construction is intended for demanding service. Together, these features create a machine suited to production environments.

The model can also form part of a broader laundry equipment plan. It may be paired with industrial dryers, commercial dryers, flatwork ironers, folding equipment, sorting systems, carts, and textile storage areas. When the washer extractor is selected with the capacity of the downstream equipment in mind, it can help create a balanced production line.

The supplier’s ability to provide OEM and ODM services adds value for project buyers and distributors. Customers with specific branding, configuration, documentation, or integration requirements can discuss their needs during the quotation and engineering stages.

15. Buyer Evaluation Checklist

Before placing an order, buyers should evaluate the following points:

• Required daily and weekly textile volume.

• Average and maximum load weight.

• Types of textiles and soil levels to be processed.

• Available electrical voltage and frequency.

• Steam availability and operating pressure.

• Water pressure, hot-water supply, and water quality.

• Drainage capacity and connection location.

• Floor loading and foundation requirements.

• Machine access route and installation clearance.

• Required dryer capacity after extraction.

• Operator training and safety procedures.

• Spare-parts and after-sales service arrangements.

• Local regulatory and installation requirements.

These points help ensure that the selected equipment matches the actual operating environment. A machine can provide excellent performance only when it is correctly specified, installed, operated, and maintained.

16. Questions and Answers

Q1: What is the rated capacity of this washer extractor?

The rated capacity is 120kg. The appropriate working load may vary according to textile density, fabric type, moisture absorption, and the selected washing program. Operators should follow the supplier’s loading recommendations rather than exceeding the rated capacity.

Q2: What does the forward tilting function do?

The forward tilting function moves the drum toward the front of the machine, making loading and unloading more accessible. It can reduce reaching, bending, and manual handling effort while helping operators transfer processed textiles more efficiently.

Q3: How quickly can the machine be unloaded?

The supplied product information states that the front-tilt drain design can enable an unloading process of approximately 30 seconds. Actual performance depends on the textile type, load condition, operator procedure, and laundry layout.

Q4: What is the maximum extraction speed?

The listed maximum speed is 745 rpm. The machine has a listed G factor of 400, supporting strong mechanical water extraction before the load is transferred to a dryer.

Q5: Why is a frequency converter important?

A frequency converter allows more precise control of drum speed. This helps operators adjust washing and extraction behavior for different textile types, improve process consistency, support textile protection, and manage acceleration and deceleration more smoothly.

Q6: Which industries can use this machine?

The machine is suitable for industrial laundry rooms, hotels, hospitals, commercial laundry services, dry cleaners, ships, textile service companies, and other facilities that process large volumes of washable textiles.

Q7: Can the washer extractor process delicate textiles?

It can be configured for different textile requirements through appropriate wash programs and speed settings. However, delicate textiles must be evaluated individually, and operators should use suitable temperatures, chemicals, mechanical action, and extraction speeds.

Q8: What utilities are required?

The listed configuration uses 380V power, DN25 steam piping, DN50 water inlet piping, DN50 hot-water piping, and the specified drain connection. Steam pressure is listed at 0.4–0.6MPa, and water inlet pressure is listed at 0.2–0.4MPa. Final requirements should be confirmed with the supplier before installation.

Q9: Is the machine suitable for continuous commercial operation?

It is designed for demanding industrial and commercial laundry environments. Actual operating suitability depends on correct installation, loading, programming, maintenance, utility supply, and adherence to the manufacturer’s operating instructions.

Q10: How can the machine help reduce drying costs?

The 400 G extraction performance can remove a substantial amount of water before drying. Lower residual moisture may shorten dryer cycles and reduce the energy needed to evaporate water. The actual savings depend on textiles, programs, dryer efficiency, and operating conditions.

Q11: What should be checked before delivery?

Customers should verify machine dimensions, weight, floor loading, access routes, electrical supply, steam and water connections, drainage, installation clearance, ventilation, maintenance access, and local compliance requirements.

Q12: Does the manufacturer support OEM or ODM projects?

Jiangsu Chuandao Intelligent Equipment Co., Ltd. offers OEM and ODM commercial washer extractor services. Buyers should discuss branding, configuration, documentation, packaging, technical adaptations, and project requirements during the quotation stage.

17. Conclusion

The 120kg Forward Tilting Washer Extractor is designed for laundry businesses that need more than basic washing capability. It combines a large industrial capacity with powerful extraction, precise speed control, practical tilting operation, and durable construction.

Its forward tilting structure improves access to the drum and can reduce the physical demands of loading and unloading. The front-tilt drain design supports rapid textile transfer, while the frequency converter provides flexible control of washing and spin speeds. With a maximum speed of 745 rpm and a G factor of 400, the machine is also designed to support efficient preparation for drying.

For hotels, hospitals, commercial laundries, ships, dry cleaners, and industrial textile service companies, these features can contribute to higher throughput, improved operator ergonomics, consistent washing quality, and lower downstream drying demand. The machine’s value is further supported by the manufacturer’s engineering focus, industrial equipment experience, OEM/ODM capabilities, and attention to project-oriented supply.

As with any major laundry investment, the best results depend on correct specification, professional installation, proper operator training, preventive maintenance, and a balanced production workflow. When these conditions are in place, the 120kg Forward Tilting Washer Extractor can serve as a dependable and efficient foundation for modern industrial laundry operations.

References

1. Industrial laundry equipment operating and maintenance principles.

2. Commercial textile care and washing process management guidelines.

3. General engineering practices for washer extractor installation and utility planning.

4. Industrial machinery safety and operator training principles.

5. Manufacturer-provided technical specifications for the SHS-2120T 120kg Forward Tilting Washer Extractor.

6. General best practices for laundry water extraction, drying efficiency, and textile handling.

Product: 120kg Forward Tilting Washer Extractor
