Coin-Operated Single Tumble Dryer: Commercial Performance, Flexible Heating, and Reliable Operation

Commercial laundry businesses need drying equipment that can operate repeatedly, deliver consistent results, and remain simple for customers and operators to use. The coin-operated single tumble dryer in the 15, 20, and 25 kilogram range is designed for exactly this environment. It combines practical capacity options, programmable drying control, flexible electric or gas heating, robust construction, and an anti-pry payment system in one commercial solution.

These dryers are suitable for laundromats, apartment laundry rooms, hotels, hospitals, dormitories, care facilities, garment-care businesses, and other locations where customers or staff need dependable self-service or managed drying. The three models—SDR-2015C, SDR-2020C, and SDR-2025C—allow operators to select a capacity that matches their floor space, customer traffic, utility supply, and typical load size.

Jiangsu Chuandao Intelligent Equipment Co., Ltd., operating under the Kingstar laundry equipment brand, develops commercial laundry machinery for demanding operating environments. Its product approach combines equipment customization, durable component selection, intelligent controls, practical service guidance, and manufacturing experience. The result is a dryer platform designed not only to dry garments efficiently, but also to support the commercial requirements of uptime, maintenance control, payment security, and long-term value.

Commercial Drying Equipment for High-Use Environments

In a commercial laundry setting, a dryer must do more than generate heat. It must maintain stable airflow, protect fabrics, withstand repeated loading, provide predictable cycle control, and allow operators to manage the machine with minimal supervision. A machine that dries slowly, loses heat, or requires frequent repairs can reduce customer satisfaction and increase operating costs.

The coin-operated single tumble dryer addresses these concerns through a combination of high-power heating, an insulated outer cylinder, a programmable touchscreen, and a durable stainless-steel inner drum. Its design also considers the business side of laundry operation. A secure coin control box helps protect revenue, while customizable programs allow operators to adapt cycles to local customer expectations and different fabric categories.

Unlike domestic dryers, commercial tumble dryers are designed for frequent use and higher daily throughput. Their components must tolerate repeated thermal expansion, continuous drum rotation, lint exposure, and regular loading and unloading. The SDR series is positioned as a heavy-duty commercial dryer platform for businesses that require dependable performance across many cycles.

The available capacities make the equipment suitable for both moderate and high-volume applications. A 15 kilogram model can serve smaller laundry rooms or locations with limited space, while the 20 and 25 kilogram versions are better suited to larger loads, family-sized laundry, hotel linens, and commercial textile processing.

Product Range and Model Selection

The SDR-2015C provides a rated capacity of 15 kilograms and a drum volume of 300 liters. It has a drum diameter of 750 millimeters, a drum depth of 680 millimeters, and a machine size of approximately 800 millimeters wide, 1,200 millimeters deep, and 1,600 millimeters high. Its main motor and fan motor are each rated at 0.37 kilowatts, while its electric heating power is 13.5 kilowatts.

The SDR-2020C offers a 20 kilogram capacity and a 360 liter drum volume. It uses an 850 millimeter drum diameter and a 640 millimeter drum depth. With dimensions of approximately 900 millimeters in width, 1,200 millimeters in depth, and 1,700 millimeters in height, it provides a practical middle option for commercial laundry rooms. Its main motor and fan motor are rated at 0.55 kilowatts, and its electric heating power is 18 kilowatts.

The SDR-2025C is the largest model in the range, with a 25 kilogram capacity and a 460 liter volume. It has an 850 millimeter drum diameter and an 800 millimeter drum depth. Its approximate dimensions are 890 millimeters wide, 1,420 millimeters deep, and 1,805 millimeters high. The main motor is rated at 0.75 kilowatts, the fan motor at 0.55 kilowatts, and the electric heating power at 22.5 kilowatts.

Specification	SDR-2015C	SDR-2020C	SDR-2025C
Rated capacity	15 kg	20 kg	25 kg
Drum volume	300 L	360 L	460 L
Drum diameter	750 mm	850 mm	850 mm
Drum depth	680 mm	640 mm	800 mm
Main motor power	0.37 kW	0.55 kW	0.75 kW
Fan motor power	0.37 kW	0.55 kW	0.55 kW
Electric heating power	13.5 kW	18 kW	22.5 kW
Exhaust airflow	21.3 m³/min	36 m³/min	36 m³/min
Approximate weight	275 kg	420 kg	468 kg
Screen size	7 inches	7 inches	7 inches

Choosing the correct model involves more than comparing rated capacity. Operators should consider available floor area, exhaust ducting, electrical service, gas availability, expected daily cycles, and the types of goods being dried. A properly matched dryer can reduce partial loads, avoid excessive cycle times, and make better use of available utilities.

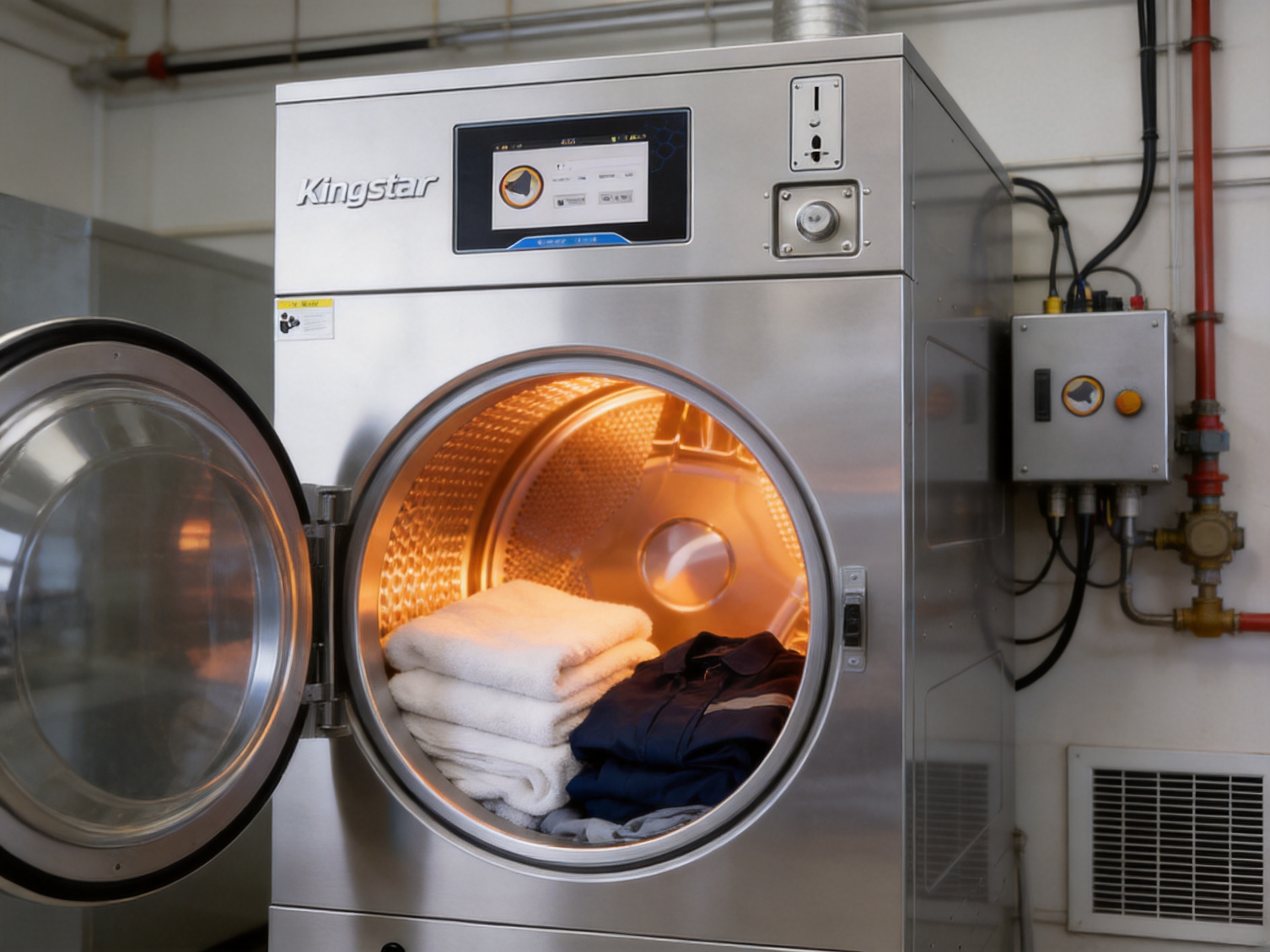

Coin-Operated Single Tumble Dryer（15/20/25kg）

Flexible Electric and Gas Heating

One of the most useful features of the SDR series is its support for electric or gas heating. This allows customers to select the heating method that best matches the local energy infrastructure and operating cost structure. Some facilities have convenient access to high-capacity electrical power, while others may prefer gas heating because of local utility pricing or existing building services.

The rated electrical heating power is 13.5 kilowatts for the 15 kilogram model, 18 kilowatts for the 20 kilogram model, and 22.5 kilowatts for the 25 kilogram model. The product specifications also list gas heating power of 19.1 kilowatts, gas consumption of 2.17 cubic meters per hour, and gas pressure requirements of 2 to 5 kilopascals across the three models.

Electric heating can be attractive where installation simplicity, local electrical availability, or reduced combustion-related infrastructure is important. Gas heating can provide an alternative for facilities designed around gas-fired laundry equipment. In either case, professional installation is essential. Utility connections, ventilation, exhaust arrangements, electrical protection, and local safety requirements must be evaluated before commissioning.

The heating system is supported by insulation around the outer cylinder. This helps retain heat within the drying chamber and can reduce unnecessary heat loss to the surrounding area. Faster temperature rise and improved heat retention may help shorten drying times, although actual performance depends on textile type, residual moisture, load size, ambient conditions, exhaust design, and selected program parameters.

Flexible heating is a meaningful advantage over equipment restricted to a single energy source. Commercial operators can choose the version that fits their building rather than redesigning their utility system around the machine. For multi-site laundry businesses, this flexibility can also simplify equipment planning across locations with different infrastructure.

Intelligent Control Through a Seven-Inch Touchscreen

The dryer is equipped with a seven-inch full-color high-definition touchscreen. The control interface supports up to 99 built-in automatic programs, including preset and editable options. This gives operators a practical way to configure cycles for different loads, materials, and service requirements.

Commercial laundry customers do not always dry the same type of textile. Everyday clothing, towels, sheets, uniforms, workwear, and other linens may require different temperature, time, and airflow settings. A large, clearly organized program library helps reduce the need for manual adjustment during every cycle.

Preset programs can support consistent operation across shifts. Once staff members have established suitable parameters, the selected programs can help different operators follow the same procedure. Customizable settings also allow a business to adapt the machine to local preferences, specific textile categories, or seasonal operating needs.

The touchscreen is particularly useful in a coin-operated environment because it can make the customer interaction more understandable. Clear cycle selection and visible operating information can reduce confusion and unnecessary staff intervention. For managed laundry facilities, the interface can also make it easier for employees to select a suitable program for a particular load.

Intelligent controls do not replace proper loading and maintenance. They work best when operators avoid overloading the drum, separate unsuitable materials, clean the lint filter, and select a cycle appropriate for the textile. The control system provides flexibility, while correct operating practice protects drying quality and equipment life.

Durable Drum Construction and Practical Loading

The inner cylinder is made of 304 stainless steel and uses a mesh thickness of 1.2 millimeters. Stainless steel is well suited to commercial laundry applications because it provides corrosion resistance, a smooth surface, and durability under repeated contact with wet textiles, heat, and cleaning procedures.

The inner cylinder opening diameter is listed as 8 millimeters. The drum design is intended to provide a balanced combination of air movement, textile tumbling, and structural strength. Proper tumbling helps expose more of the fabric surface to heated air, which supports uniform drying.

The product information identifies a volume load ratio of 1:20 for the 15 kilogram model and 1:18 for the 20 and 25 kilogram models. These figures provide a reference for understanding how the rated textile load relates to drum volume. In day-to-day use, the appropriate load also depends on the material, moisture content, fabric thickness, and the required level of tumbling.

A large door opening makes loading and unloading easier. This is important in commercial operations where staff or customers may process bulky items such as bedding, towels, blankets, and work garments. Easier access can reduce handling time and make it simpler to inspect the drum before and after each cycle.

The 15 kilogram model weighs approximately 275 kilograms, while the 20 and 25 kilogram models weigh approximately 420 and 468 kilograms respectively. These weights reflect the machines’ commercial construction and should be considered during transportation, positioning, floor assessment, and installation planning.

Airflow, Exhaust, and Drying Efficiency

Airflow is one of the most important factors in tumble dryer performance. Heat alone does not dry textiles efficiently. Moisture must be transferred from the fabric into the air and then removed through the exhaust system. If the exhaust duct is restricted, poorly designed, or filled with lint, drying times can increase and the machine may operate under unnecessary thermal and mechanical stress.

The SDR-2015C has an exhaust diameter of 150 millimeters and an exhaust airflow of 21.3 cubic meters per minute. The SDR-2020C and SDR-2025C use a 200 millimeter exhaust diameter and list an exhaust airflow of 36 cubic meters per minute. These specifications should be used by qualified installers when designing the exhaust route.

Exhaust ducting should be as direct and unobstructed as practical. Excessive bends, long runs, undersized ducts, poor termination, or inadequate makeup air can reduce the effectiveness of the drying system. Because commercial dryers may operate continuously during busy periods, the ventilation design should be treated as a core part of the installation rather than an accessory.

Regular exhaust inspection is also necessary after installation. Lint can accumulate even when a filter is cleaned consistently. Operators should check the filter, ductwork, exhaust outlet, and surrounding area according to a documented maintenance schedule. Any unusual increase in drying time, operating temperature, vibration, or noise should be investigated promptly.

Competitors may promote heating power without giving equal attention to airflow and ventilation. A more complete evaluation considers the relationship between heating capacity, fan performance, drum volume, exhaust design, and control settings. The SDR series presents these specifications together, helping buyers assess whether the machine is suitable for their facility.

Security Features for Self-Service Laundry Businesses

A coin-operated dryer must protect more than clothing. It must also protect the revenue and operating assets of the laundry provider. The SDR series includes an anti-pry coin control box designed to discourage unauthorized access and tampering.

Payment security is especially important in unattended or lightly staffed laundry rooms. A vulnerable coin mechanism can expose operators to revenue loss, service interruptions, and damage to the control system. A reinforced payment enclosure provides an additional physical barrier and supports more reliable day-to-day operation.

The machine’s property-protection design is intended to improve operational flexibility while helping reduce overhead costs. When the payment area, control system, and external casing are maintained properly, operators can spend less time responding to avoidable access problems and more time managing customer service and equipment utilization.

Coin operation also creates a direct relationship between machine performance and customer trust. Customers expect the dryer to start correctly after payment, complete the selected cycle, and provide consistent results. Reliable controls, clear program selection, and preventive inspection all contribute to a better self-service experience.

Payment systems may need to be adapted to local currency, token, or business requirements. Buyers should discuss compatibility, installation, and customization needs with the supplier before ordering. The company’s flexible customization approach can help align the machine with different commercial laundry formats and market requirements.

Imported Electrical Components and Manufacturing Reliability

Electrical components play a central role in the safety, control, and service life of commercial laundry equipment. The product information states that the dryer uses components from established international suppliers, including Mitsubishi inverters and Schneider contactors. It also identifies imported brands for wires, plugs, and bearings.

An inverter can support controlled motor operation and may help manage acceleration, rotation, and operating stability. Contactors and other control components must handle repeated switching and work reliably in a heat- and vibration-intensive environment. Properly selected wires, plugs, terminals, and bearings contribute to the overall integrity of the electrical and mechanical systems.

Component selection is only one part of manufacturing quality. Reliable equipment also depends on correct assembly, wiring discipline, mechanical alignment, inspection, testing, and documentation. Kingstar’s manufacturing strengths are supported by its experience in research and development, production, and customer service within the commercial laundry equipment sector.

The company’s equipment development process is focused on practical commercial requirements. These include repetitive operation, accessible maintenance, adaptable controls, utility flexibility, and protection of customer and operator assets. A machine designed around these considerations is more likely to perform consistently than one optimized only for an initial purchase price.

For international buyers, the availability of familiar component brands can also simplify troubleshooting and replacement planning. Local service personnel may already understand widely used electrical and control components. However, all replacement work should be completed by trained technicians using compatible parts and following applicable electrical safety procedures.

Manufacturing and Product Development Strengths

Jiangsu Chuandao Intelligent Equipment Co., Ltd. presents itself as a China-based manufacturer and supplier of washing machines, laundry machinery, and washer extractors. Its commercial product portfolio includes equipment for industrial and commercial laundry applications. This broader product experience supports a more complete understanding of laundry workflows, from washing and extraction to drying.

A manufacturer with knowledge across multiple stages of textile care can better understand how residual moisture, wash chemistry, extraction performance, textile classification, and drying affect one another. Drying performance does not exist independently. The final cycle depends partly on how much water remains in the load after washing and extraction.

Kingstar also emphasizes OEM and ODM capabilities. This is valuable for distributors, laundry-equipment integrators, hospitality groups, and business operators with specific requirements. Customization may involve control language, payment arrangements, branding, heating configuration, electrical standards, program settings, or installation-related details, subject to technical evaluation and order specifications.

Research and development is another important strength. Commercial equipment must evolve with changing customer expectations, energy considerations, building requirements, and service models. A product platform with editable programs, multiple heating methods, and configurable commercial features gives the manufacturer a foundation for responding to different applications.

Manufacturing capability should ultimately be judged by repeatable product quality and support after delivery. A supplier’s responsibility includes helping customers select the correct model, preparing technical information, supporting installation, explaining maintenance, and responding to service questions. Kingstar’s product materials place emphasis on client guidance and preventive maintenance, which are important parts of commercial equipment ownership.

Advantages Compared with Basic Commercial Dryers

The SDR series offers several advantages when compared with basic commercial dryers that provide only a limited control panel and a single heating option. Its seven-inch color touchscreen and 99 programmable cycles offer greater flexibility for operators who handle several textile categories.

The choice between electric and gas heating can make the equipment easier to integrate into different buildings. A single-energy configuration may be appropriate for some facilities, but it can restrict installation options in markets where utility costs or building services vary. Dual heating support gives buyers more planning flexibility.

The anti-pry coin control box is another distinction. In a self-service environment, payment security is a practical operating requirement rather than a cosmetic feature. Protecting the control and coin area can reduce the risk of unauthorized access and help preserve revenue continuity.

The stainless-steel inner cylinder, high-power heating system, insulated outer cylinder, and commercial motors are designed for repeated use. These features are especially relevant to laundromats and hospitality businesses that cannot depend on domestic equipment for heavy daily workloads.

The range also provides three capacity options within a consistent product family. Operators can select a smaller unit for compact locations or combine different capacities to serve both small and large loads. Using multiple sizes can help reduce the temptation to place small loads in an oversized dryer or overload a small machine.

A responsible comparison should consider total operating value rather than a single specification. Purchase cost, installation, energy consumption, drying time, maintenance requirements, payment security, service availability, and expected daily utilization all influence the final business result. The most suitable dryer is the one that performs reliably within the specific operating conditions of the facility.

Applications Across Commercial Laundry Sectors

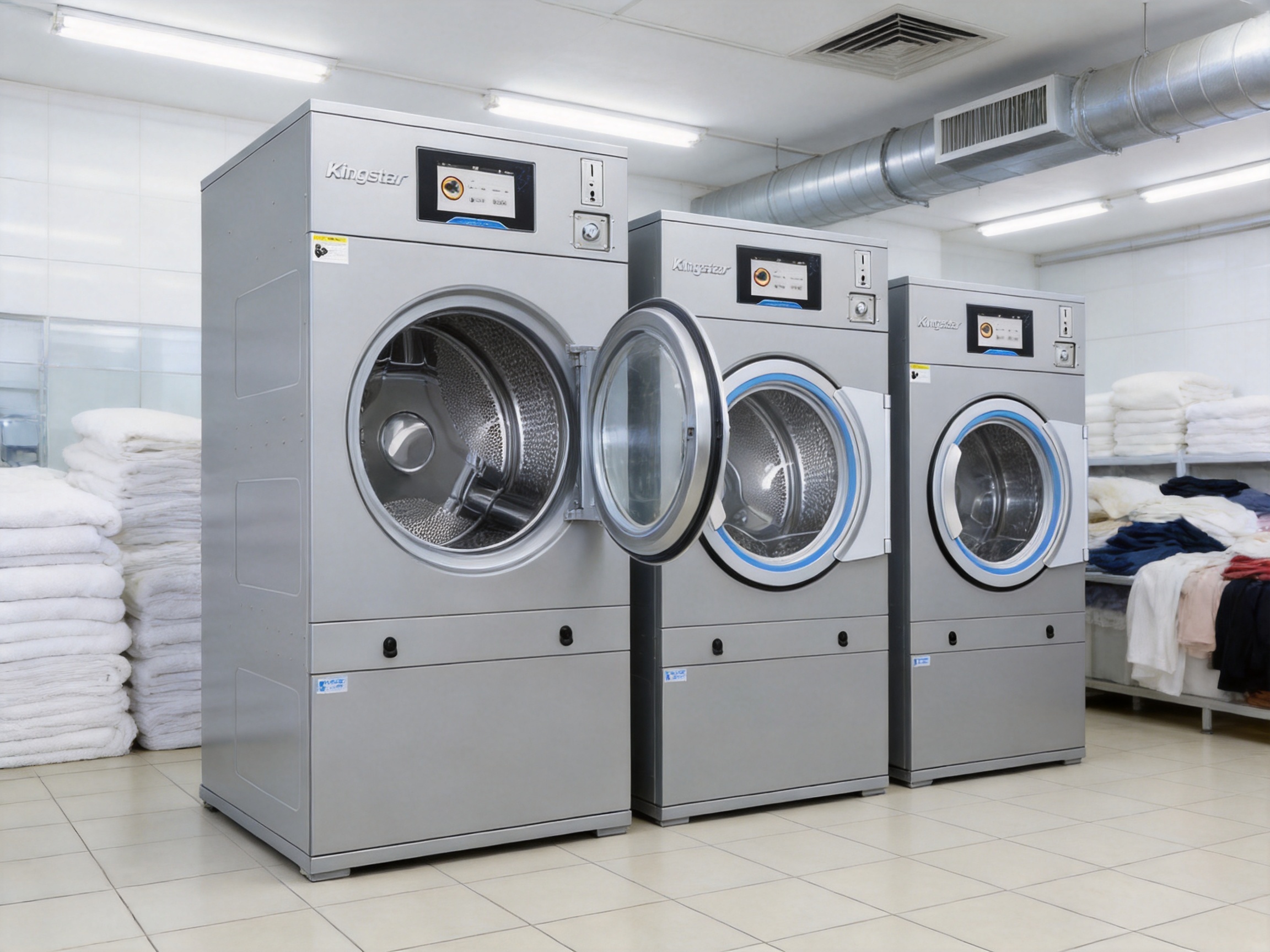

Laundromats

Laundromats require equipment that customers can operate with limited assistance. The touchscreen, automatic programs, coin control system, large door, and multiple capacity options support a self-service model. A laundromat may install several dryers of the same size or combine 15, 20, and 25 kilogram machines to serve different load types.

Operators should place the dryers in a layout that allows comfortable loading, visible cycle selection, safe customer movement, and effective ventilation. Clear operating instructions and routine cleaning schedules can reduce misuse and maintain the appearance of the laundry room.

Apartment Complexes and Dormitories

Residential laundry rooms often experience concentrated demand during evenings and weekends. Durable commercial dryers can help property managers serve many residents without relying on domestic units that may not be designed for continuous shared use.

Coin operation provides a straightforward payment model, while program flexibility allows residents to dry ordinary clothing, towels, and bedding. Property managers should establish a planned maintenance system and make lint-filter cleaning responsibilities clear to staff or service providers.

Hotels and Hospitality Businesses

Hotels process towels, sheets, uniforms, robes, and other linens on a regular basis. The 20 and 25 kilogram models can help accommodate larger textile loads, while the programmable control system supports different drying requirements.

Hospitality operators should coordinate dryer capacity with washer-extractor capacity and daily linen volume. Proper extraction before drying can reduce the moisture burden and help improve overall laundry productivity. A balanced system prevents the dryer from becoming a bottleneck after washing.

Healthcare and Care Facilities

Healthcare and care facilities need consistent textile processing and careful hygiene procedures. The stainless-steel inner drum is suitable for routine cleaning, while programmable cycles can help staff organize drying for clothing, towels, bedding, and other approved textiles.

Facility managers must follow their own infection-control procedures and confirm that selected programs meet the requirements of the textiles being processed. The dryer should be installed, operated, and maintained according to applicable local regulations and the supplier’s technical guidance.

Garment and Textile Service Businesses

Garment-care companies and textile service providers may need to process loads with different levels of moisture and varied fabric composition. Editable programs provide useful operational flexibility, but staff training remains essential. Employees should understand which textiles can be tumble dried, which temperatures are appropriate, and how to prevent shrinkage or heat damage.

Installation Planning and Utility Requirements

Correct installation is essential to achieving the advertised performance of any commercial dryer. Before delivery, the buyer should confirm the machine dimensions, doorway clearances, floor capacity, ventilation route, electrical supply, gas availability if applicable, and service access.

All three models use a rated voltage specification of 380/3/50, indicating a three-phase, 380-volt, 50-hertz electrical configuration. Buyers in regions with different electrical standards should confirm available configurations and any required adaptations before placing an order.

The gas inlet diameter is listed as 10 millimeters for all models, with gas pressure requirements of 2 to 5 kilopascals. Gas installation must be performed by qualified professionals. The installer should verify local regulations, shutoff arrangements, leak testing, combustion-air requirements, exhaust conditions, and emergency procedures.

Exhaust ducting should be planned to match the specified exhaust diameter. The 15 kilogram model lists a 150 millimeter exhaust connection, while the 20 and 25 kilogram models list 200 millimeter connections. The duct should not be reduced without technical approval because restrictions can affect airflow, drying time, temperature control, and safety.

The room should have sufficient makeup air to replace exhausted air. Without adequate air replacement, negative pressure may develop, reducing airflow and affecting combustion in gas-heated configurations. The surrounding area should also provide enough clearance for cleaning, inspection, loading, unloading, and service work.

Installation documentation should record the model, serial number, utility connections, exhaust arrangement, commissioning date, and responsible technician. This information can support future troubleshooting and preventive maintenance.

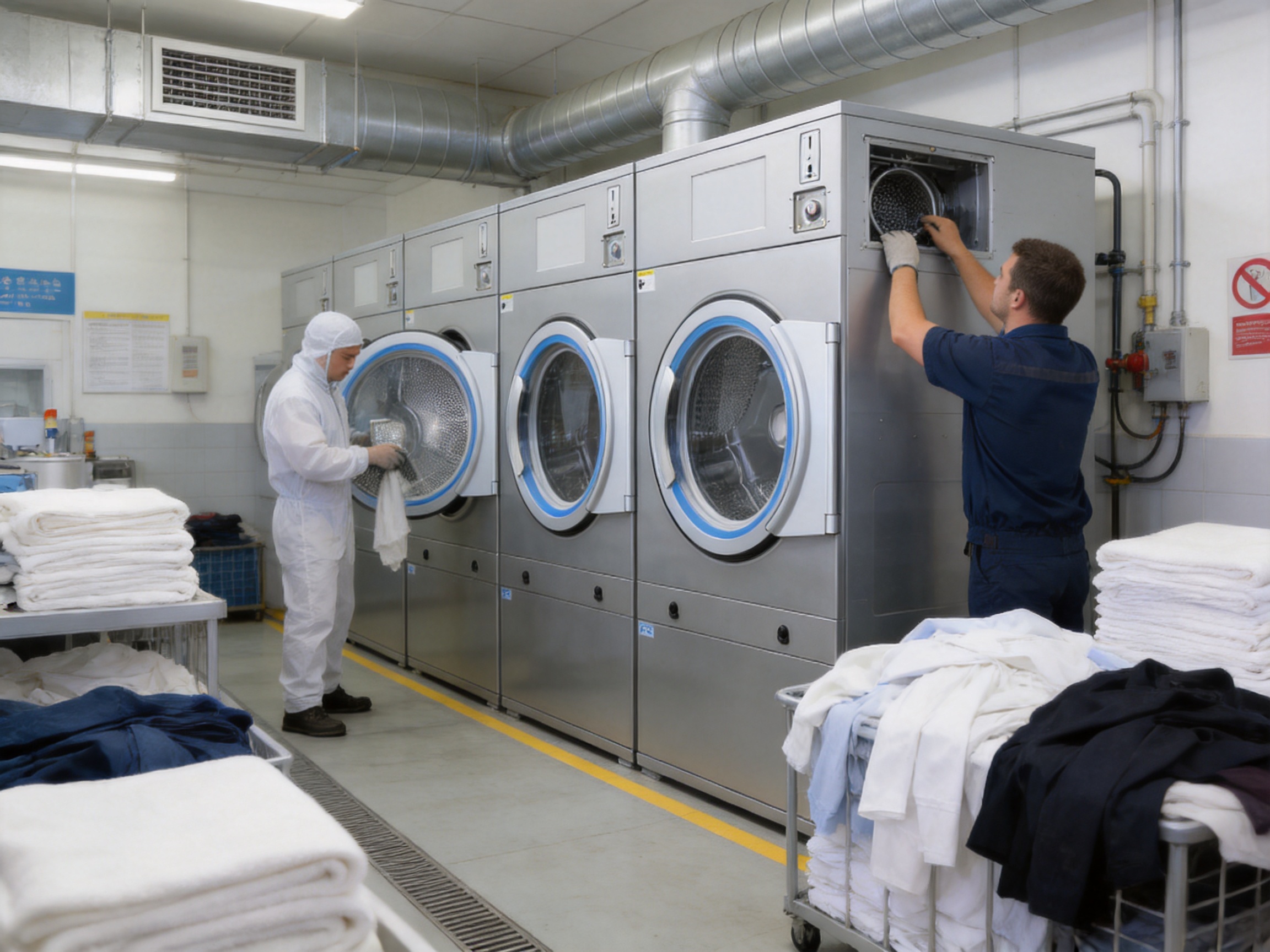

Routine Cleaning and Preventive Maintenance

Regular cleaning is one of the simplest ways to preserve drying efficiency. The lint filter should be cleaned after every cycle. Lint restricts airflow, increases drying time, raises energy consumption, and may create a fire risk if allowed to accumulate in unsuitable areas.

The drum, door seal, and door opening should be inspected regularly. Residue from fabric treatments, dust, and fibers can build up over time. Weekly inspection is a practical starting point for busy commercial sites, although the correct frequency depends on usage volume and the type of goods processed.

Exhaust ducts should be inspected and cleaned monthly or whenever airflow appears reduced. Facilities processing heavily linted textiles may require more frequent attention. Operators should never rely solely on a calendar schedule if the machine shows symptoms such as longer cycles, excessive heat, unusual odors, or repeated temperature warnings.

Bearings, motor belts, and door hinges should be inspected for wear, looseness, noise, or misalignment. Quarterly inspection is a useful general reference for commercial operations, but high-volume facilities may need shorter intervals. Worn belts and bearings should be replaced before they cause secondary damage or an unexpected stoppage.

Maintenance task	Suggested frequency	Primary purpose
Clean lint filter	After every cycle	Maintain airflow and reduce lint accumulation
Inspect drum and door seal	Weekly	Maintain hygiene and identify residue or wear
Inspect exhaust duct	Monthly or as needed	Preserve ventilation and reduce overheating risk
Inspect bearings and belts	Quarterly	Prevent mechanical failure and excessive vibration
Clean external casing and coin mechanism	Monthly	Maintain appearance and payment functionality
Check electrical connections and safety sensors	According to service schedule	Support safe and reliable operation

Moving parts such as bearings, hinges, and motor shafts should be lubricated only where recommended by the manufacturer. Excessive or unsuitable lubricant can attract lint or contaminate surrounding components. Cleaning products should be compatible with stainless steel, painted surfaces, seals, and electrical enclosures.

Operators should keep a maintenance log showing cleaning, inspection, lubrication, repairs, and replaced parts. A written record helps identify recurring problems, schedule service during low-demand periods, and plan future component purchases.

Operational Practices That Improve Dryer Performance

Correct loading is essential. Loads should not be packed tightly into the drum because restricted movement reduces contact between textiles and heated air. Overloading can produce damp areas, extend cycle times, increase mechanical stress, and reduce customer satisfaction.

Underloading can also be inefficient in some situations because the machine may consume energy without processing a full practical load. Operators should follow the rated capacity while considering the material and moisture condition of the textiles. Bulky goods may require a lower practical load than lightweight clothing.

Items should be checked before loading. Foreign objects such as coins, metal parts, pens, or sharp objects can damage textiles and equipment. Zippers, buttons, and fasteners should be handled according to the facility’s procedures. Textiles that are not suitable for tumble drying should be excluded.

Sorting by material and thickness supports more consistent results. Towels, sheets, uniforms, and lightweight clothing may require different programs. Mixing items with very different drying characteristics can cause some goods to overdry while others remain damp.

The dryer should not be left with an active fault or abnormal noise. Warning signs include excessive vibration, unusual scraping, poor airflow, repeated overheating, a burning smell, failure of the door switch, or inconsistent drum rotation. The machine should be stopped and inspected by qualified personnel when such symptoms occur.

Safety Considerations

Commercial tumble dryers combine heat, moving parts, electrical power, airflow, and, in some configurations, gas. Safety therefore depends on both machine design and operating discipline. Staff should be trained to use the controls, clean the lint filter, identify hazards, and report abnormal conditions.

Electrical inspections should include power cords, terminals, fuses, contactors, control panels, grounding, and safety sensors. Work inside electrical cabinets should be performed only by qualified technicians using appropriate isolation procedures.

Gas-heated installations require particular attention to gas connections, pressure, combustion, ventilation, flame monitoring, and exhaust. Any suspected gas leak requires immediate action under the facility’s emergency procedure and should be handled by authorized professionals.

The exhaust path must remain clear. Lint, plastic, paper, and other combustible materials should not be stored near the dryer or its exhaust outlet. The area around the machine should be kept clean and accessible so that operators can identify leaks, lint accumulation, and other conditions quickly.

Door safety devices and temperature controls should not be bypassed. These components help prevent operation under unsafe conditions. If a safety sensor does not function correctly, the equipment should be removed from service until the issue has been repaired.

Cost Control and Commercial Value

The financial value of a commercial dryer depends on its full operating life rather than its purchase price alone. Businesses should consider capacity utilization, cycle duration, energy consumption, maintenance labor, replacement parts, downtime, payment revenue, and customer retention.

A dryer that is correctly matched to daily demand can reduce unnecessary partial loads and improve throughput. Multiple capacity options also allow a business to create a more flexible equipment mix. For example, smaller units may serve ordinary clothing while larger machines handle bedding and bulkier loads.

Electric and gas heating options allow operators to evaluate local utility economics. Energy prices, peak-demand charges, gas availability, building ventilation, and installation costs vary by market. The most economical heating method should be selected through a site-specific comparison rather than a general assumption.

Maintenance directly affects cost control. Cleaning the filter and exhaust route helps preserve airflow, while timely belt and bearing replacement can prevent more expensive failures. A documented preventive maintenance plan can also reduce emergency service calls and protect operating continuity.

The coin mechanism creates a direct revenue model for self-service locations. Reliable payment operation, secure access protection, clear user controls, and consistent drying results all support customer confidence. In a competitive laundry market, a positive customer experience can be as important as the machine’s technical specifications.

Customization and OEM or ODM Cooperation

Different commercial laundry businesses may require different configurations. A laundromat may focus on coin or token operation, while a hotel may prefer controlled staff access. A distributor may need private labeling, localized documentation, or a specific electrical configuration. An industrial laundry may require customized programs for its textile categories.

Kingstar’s OEM and ODM capabilities provide a basis for discussing these requirements. Customization should be evaluated in relation to technical feasibility, production quantity, local regulations, service support, and delivery schedule. Buyers should provide detailed information about voltage, frequency, heating source, payment method, language, installation conditions, and expected workload.

Software and program customization can be particularly useful. Operators may want cycles grouped by clothing, towels, sheets, uniforms, or other categories. They may also need different time or temperature settings to reflect local textile practices. Any customized program should be tested carefully to balance drying performance, textile protection, and energy use.

Customization is most successful when the supplier and buyer define requirements early. Clear technical communication helps prevent delays and ensures that the final equipment matches the intended installation. It also supports the preparation of spare-parts lists, manuals, training materials, and service procedures.

Why Manufacturer Support Matters

Commercial laundry equipment is a long-term business asset. The quality of the supplier’s support can influence the value of the machine after delivery. Product selection guidance helps customers avoid choosing a dryer that is too small, too large, or incompatible with the site’s utilities.

Installation assistance can help ensure that the electrical, gas, exhaust, and floor conditions are addressed before commissioning. Operating guidance helps staff use programs correctly and avoid preventable misuse. Maintenance guidance helps preserve airflow, heating performance, mechanical reliability, and payment functionality.

Kingstar provides product information covering cleaning, component inspection, ventilation, lubrication, electrical checks, and preventive maintenance. This type of guidance is useful for businesses that need to establish a repeatable equipment-care process across one or more locations.

For distributors and international customers, communication is also important. The company lists experience in manufacturing, research and development, and client services, as well as support for commercial laundry equipment. Buyers should confirm response procedures, warranty terms, spare-parts availability, technical documentation, and commissioning responsibilities before completing a purchase.

Recommended Evaluation Process Before Purchase

First, estimate the facility’s daily textile volume and peak demand. Consider the number of operating hours, expected cycles, average load size, and the largest items that must be dried. This information will help determine whether the 15, 20, or 25 kilogram model is appropriate.

Second, inspect the installation site. Measure doors, corridors, elevators, and service clearances. Confirm that the floor can support the machine weight and operating forces. Identify the shortest practical exhaust route and determine whether adequate makeup air is available.

Third, compare energy options. Review electrical capacity, gas availability, utility pricing, ventilation requirements, and installation costs. The choice between electric and gas heating should be based on the complete site condition.

Fourth, define payment and control requirements. Confirm whether the location needs coin operation, tokens, a particular currency mechanism, customer-facing instructions, or managed staff operation. Discuss possible customization before production.

Fifth, prepare a maintenance and service plan. Identify who will clean filters, inspect ducts, check belts and bearings, service electrical components, and respond to faults. A clear service plan should be part of the purchase decision.

Finally, review the supplier’s technical documentation, component selection, customization capabilities, delivery conditions, and after-sales support. A reliable commercial dryer is the result of suitable equipment, proper installation, correct operation, and consistent maintenance.

Q&A

What capacities are available?

The product family includes 15 kilogram, 20 kilogram, and 25 kilogram models. They are identified as SDR-2015C, SDR-2020C, and SDR-2025C respectively. The models provide different drum volumes and dimensions so that buyers can select equipment according to load demand and available space.

Can the dryer use electric or gas heating?

Yes. The product is designed to support electric or gas heating. The suitable option depends on the site’s electrical supply, gas availability, ventilation design, local regulations, and operating-cost analysis.

What control system does the machine use?

The dryer uses a seven-inch full-color high-definition touchscreen. It supports up to 99 built-in programs, including preset and editable cycles for different fabric types and commercial laundry requirements.

Is the inner drum made of stainless steel?

Yes. The inner cylinder is specified as 304 stainless steel with a mesh thickness of 1.2 millimeters. This construction is intended to provide durability and corrosion resistance in a commercial drying environment.

What is the purpose of the anti-pry coin control box?

The anti-pry coin control box helps protect the payment mechanism and associated operating revenue from unauthorized access or tampering. It is particularly useful in self-service and unattended laundry locations.

How often should the lint filter be cleaned?

The lint filter should be cleaned after every drying cycle. Regular filter cleaning maintains airflow, supports drying efficiency, reduces energy waste, and helps limit lint accumulation.

How often should the exhaust duct be cleaned?

The exhaust duct should be inspected and cleaned monthly or as needed. Facilities with heavy usage or high-lint textiles may require more frequent cleaning. Reduced airflow or longer drying times should prompt an immediate inspection.

What maintenance is required for the mechanical components?

Operators should inspect bearings, belts, hinges, and other moving parts for wear, noise, looseness, or misalignment. A quarterly inspection is a general reference, but high-volume facilities may need a shorter interval. Lubrication should follow the manufacturer’s recommendations.

Is the dryer suitable for laundromats?

Yes. Its coin-operated design, touchscreen control, programmable cycles, commercial construction, and multiple capacities make it suitable for laundromats. The installation must provide correct utilities, exhaust ventilation, and customer-safe operating space.

Can it be used in hotels and hospitality facilities?

Yes. The 20 and 25 kilogram models are suitable for larger loads such as towels, sheets, uniforms, and other linens, provided that the selected program and load size are appropriate for each textile.

Does the manufacturer support customization?

Kingstar offers OEM and ODM cooperation and flexible customization options. Buyers should discuss electrical standards, heating method, payment arrangement, program settings, language, branding, and other requirements before confirming the order.

What should be considered when comparing this dryer with competing products?

Buyers should compare capacity, drum volume, heating options, airflow, control flexibility, payment security, component quality, dimensions, maintenance requirements, service support, and total operating cost. A comparison based only on purchase price or heating power may not reflect long-term commercial value.

How does ventilation affect dryer performance?

Effective ventilation removes moisture-laden air and supports stable drying. Blocked or undersized exhaust ducts can extend cycle times, increase energy consumption, raise operating temperatures, and contribute to equipment wear. Proper installation and regular duct cleaning are essential.

What should operators do if the dryer produces unusual noise or vibration?

The machine should be stopped and inspected by qualified personnel. Possible causes may include an unbalanced load, worn bearings, belt problems, loose components, or installation issues. Continued operation under abnormal conditions can cause additional damage.

Can the dryer reduce maintenance needs?

The use of durable materials, commercial motors, selected electrical components, programmable controls, and practical access features can help support reliable operation. However, no commercial dryer is maintenance-free. Regular cleaning, inspection, and timely service remain necessary.

Conclusion

The coin-operated single tumble dryer range provides a practical solution for businesses that need dependable drying, flexible capacity, and self-service functionality. With 15, 20, and 25 kilogram models, operators can select equipment that suits different load volumes and floor plans.

Its principal advantages include electric or gas heating, a seven-inch touchscreen, up to 99 programmable drying cycles, a 304 stainless-steel inner cylinder, high-power heating, outer-cylinder insulation, large loading access, commercial airflow, and an anti-pry coin control box. These features address both laundry performance and the operational concerns of commercial businesses.

Kingstar’s broader strengths include commercial laundry manufacturing experience, product research and development, OEM and ODM cooperation, international component selection, and customer maintenance guidance. These capabilities support a more complete equipment solution, from model selection and customization to installation planning and long-term service.

For the best results, buyers should evaluate the dryer together with the complete laundry system. Correct model selection, suitable utility connections, professional ventilation, proper loading, regular lint removal, preventive maintenance, and staff training all contribute to safe and efficient operation. When these conditions are properly managed, the SDR series can serve as a durable and flexible drying platform for laundromats, hospitality businesses, residential laundry rooms, and other high-use commercial environments.

References

Jiangsu Chuandao Intelligent Equipment Co., Ltd. Product specification sheet for SDR-2015C, SDR-2020C, and SDR-2025C commercial coin-operated single tumble dryers.

Jiangsu Chuandao Intelligent Equipment Co., Ltd. Product information concerning intelligent drying controls, heating options, drum construction, payment protection, and imported electrical components.

Jiangsu Chuandao Intelligent Equipment Co., Ltd. Commercial laundry equipment maintenance guidance covering lint removal, ventilation, mechanical inspection, lubrication, and electrical safety checks.

Commercial laundry equipment installation and preventive maintenance principles for tumble dryers, including airflow management, exhaust cleaning, load control, and routine inspection practices.

Product: Coin-Operated Single Tumble Dryer（15/20/25kg）
