Coin-Operated Single Tumble Dryer(12/15/20/25kg)

Product overview

Kingstar’s line of commercial coin-operated washers is built to deliver outstanding efficiency, long-lasting durability, and user-friendly operation. Designed with flexible customization options, these machines are an excellent choice for laundromats, apartment complexes, and hospitality businesses. They provide consistent performance while keeping maintenance requirements low. Reach out to us today to discuss how we can tailor our solutions to your needs!

Application
  • Laundry

  • Dry cleaner

  • Self-service
    laundry

  • 12kg
  • 15kg
  • 20kg
  • 25kg
Technical Characteristics

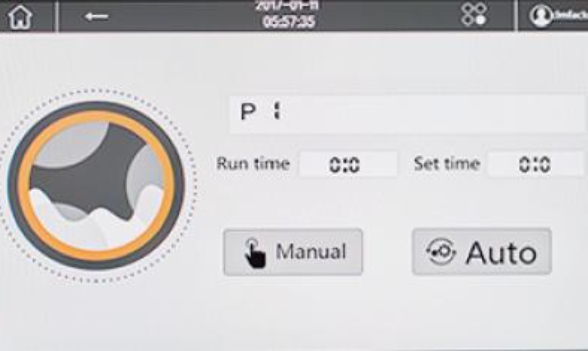

  • ① Advanced Intelligent Drying System
    Equipped with a 7-inch full-color HD touchscreen, the system features 99 built-in programs that are both pre-set and customiz-able, allowing users to easily choose the right cycle for different fabric types such as clothes and linens.

  • ② Multiple Payment Methods
    The machine supports electric and gas heating-choose the one that best fits your laundry setup.

  • ③ Property Protection Design
    Offering convenience to users and enhanced operational flexibility forlaundry service providers, while helping reduce overhead costs.

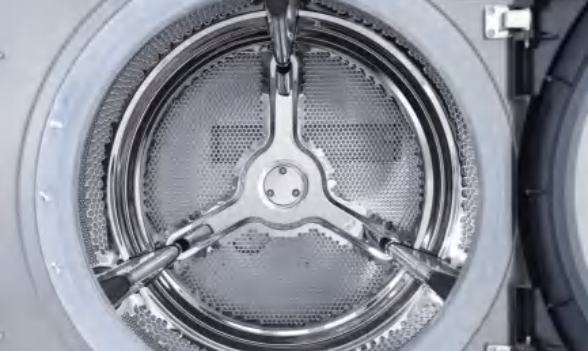

  • ④ Loading Capacity Design
    The machine is designed with a 1:20 load-to-capacity ratio fooptimal performance. lts inner drum is made of durable 304stainless steel and features a large door opening for easy loading and unloading.

  • ⑤ High-Power Heating Design
    The machine features a high-power heating system combined with an insulation layer around the outer cylinder. This design allows for rapid temperature rise, excellent heat retention, andsigni ficantly enhanced drying efficiency.

  • ⑥ Imported Electrical Components
    All electrical components are sourced from world-renowned brands, including Mitsubishi inverters and Schneider contactors. In addition, all wires, plugs, and bearings are also selected from high-quality imported brands to ensure long-term reliability and performance.

  • ⑦ Anti-Pry Coin Control Box
    Designed to protect laundry operators' assets by preventing unauthorized access and tampering.

  • ⑧ Intelligent Drying
    System Built-in editable 99 automatic programs.Allowing selection based on different clother and linens.

Simple operation
Intelligentize
Humanized design
High quality
Technical Data

Specification Model

SDR-2012C

SDR-2015C

SDR-2020C

SDR-2025C

Drum Diameter(mm)

750

750

850

850

Drum Depth(mm)

560

680

640

800

Volume(L)

300

300

400

453

Volume Load Ratio

1:20

1:20

1:20

1:18

Main Motor Power(KW)

0.20

0.37

0.55

0.75

Fan Motor Power(KW)

0.20

0.37

0.55

0.55

Heating Method

Electric/Gas Heating

Electric/Gas Heating

Electric/Gas Heating

Electric/Gas Heating

RatedVoltage(V)

380

380

380

380

Heater Power(KW)

9

13.5

18

22.5

Width(mm)

800

800

900

890

Depth(mm)

1080

1200

1200

1420

Height(mm)

1600

1600

1700

1805

Weight(kg)

200

220

250

500
