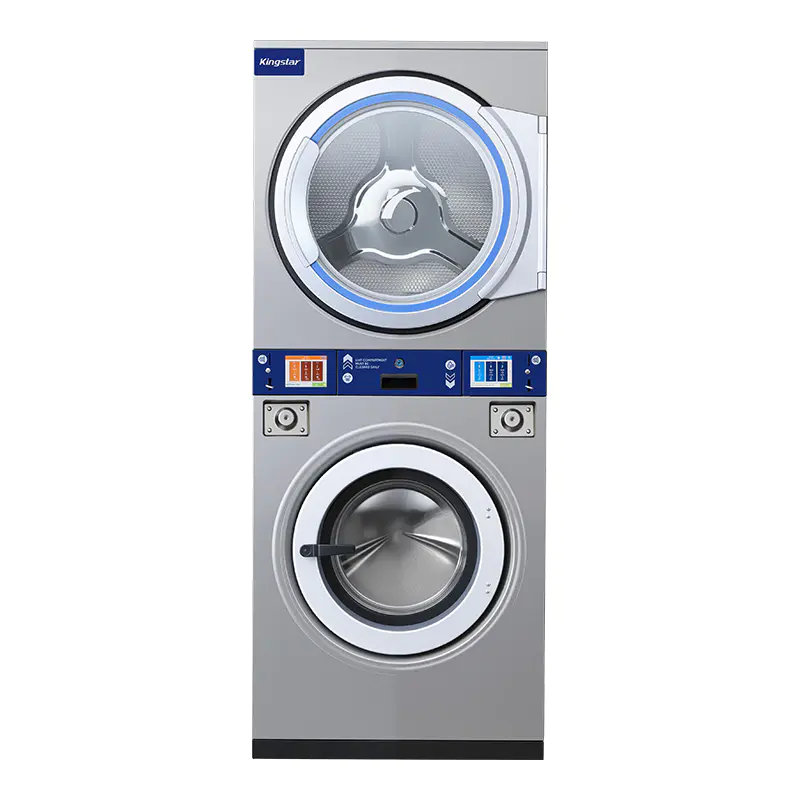

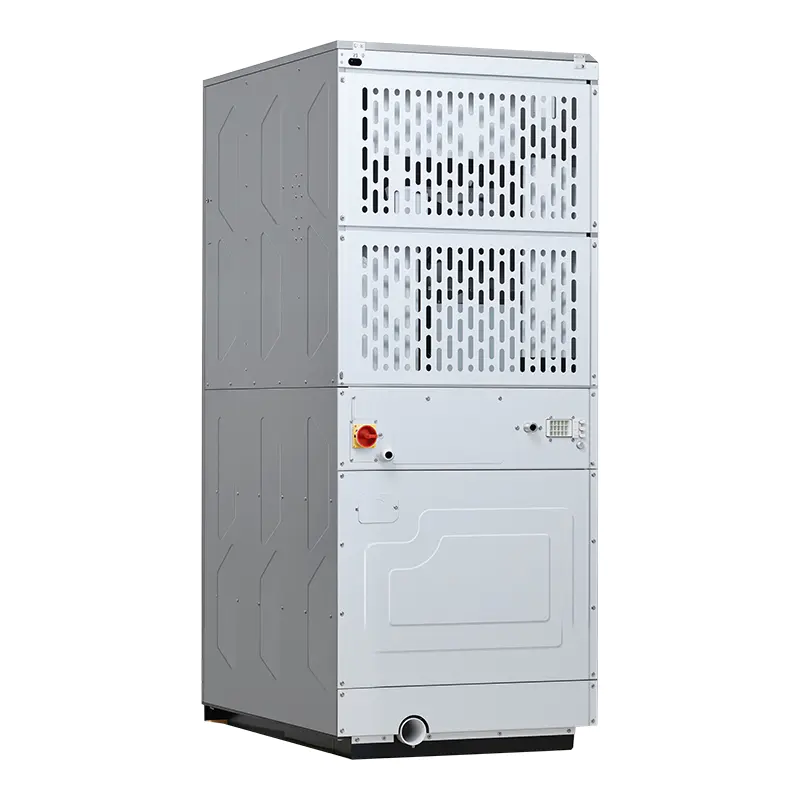

Coin-Operated Stacked Washer Dryer - Softmount(12/15/20kg)

Product overview

Kingstar’s coin-operated commercial washers are engineered to deliver exceptional efficiency, long-lasting durability, and straightforward operation. Offering a variety of customizable options, these machines are well-suited for laundromats, apartment complexes, and hotel facilities. Built for dependable performance with minimal maintenance, they provide a reliable solution for professional laundry needs. Contact us today to discover the right model for your business.

Application
  • Laundry

  • Dry cleaner

  • Self-service
    laundry

  • 12kg
  • 15kg
  • 20kg
Technical Characteristics
  • ①Ultra-Low Vibration, No Foundation Required
    Equipped with a suspension spring system and German-engineered dampers, the machine operates with minimal vibrationand can be installed directly on any floor-no concrete foundation needed.

  • ②Compact Footprint, Maximum Efficiency
    The stacked coin-operated washer-dryer design saves up to 50%of floor space, maximizing operational efficiency in space-limitedenvironments such as laundromats, hotels, schools, and apartments.

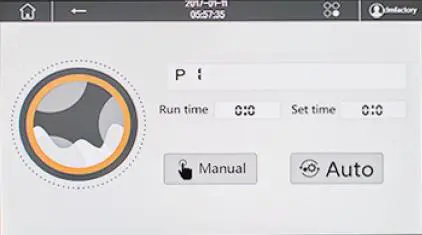

  • ③User-Friendly Intelligent Control
    An advanced 7-inch multilingual touchscreen interface supportsover 30 languages, guiding users through customizable washingand drying cycles for different fabric types. Simple, intuitive, and efficient.

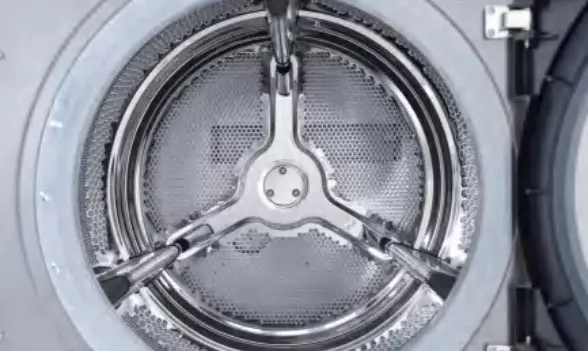

  • ④High-Grade Stainless Steel Inner Drum
    Made of 304 stainless steel, the inner drum provides outstandingrust resistance, ensuring long-term hygiene, safety, and stablewash quality.

  • ⑤Multiple Payment Methods
    Offering convenience to users and enhanced operational flexibility forlaundry service providers, while helping reduce overhead costs.

  • ⑥Intelligent Load-Based Water Control
    Equipped with a smart weighing system that automatically adjustswater usage according to the weight of the laundry-savincwater,energy, and detergent, and ensuring optimal washing results.

  • ⑦High-Efficiency Moisture Extraction
    With a spin speed of 850 rpm and 300G dehydration force, thewasher achieves exceptional moisture removal, which helpsreduce drying time and cut energy costs.

  • ⑧Efficient Lint Filtration
    The specially treated lint collector efficiently traps lint particles during drying,enhancing airflow and improving overall drying performance.

  • ⑨Energy Saving System
    Compliant with commercial-grade water and energy efficiencystandards, the machine helps laundry operators reduce operatingcosts.A high-performance heater, paired with an optimized air duct andhot/cold air cycling system, ensures fast drying with low energyconsumption.

  • ⑩Property Protection Design
    A tamper-resistant coin control box protects cash revenue fromtheft or vandalism,ensuring safe and worry-free operation forlaundry service providers.

Simple operation
Intelligentize
Humanized design
High quality
Technical Data

Specification Model

SWD-3012CS(Softmount)

SWD-3015CS(Softmount)

SWD-3020CS(Softmount)

Operating Voltage(V/P/Hz)

380/3/50

380/3/50

380/3/50

Washing Capacity(kg)

5~12

5~15

8~20

Drum Volume(L)

120

150

200

Washing/Spinning Speed(rpm)

30-850

30-850

30-850

Transmission Power(kw)

1.5

1.5

2.2

Electrical Heating Power(kw)

12

12

12

Noise(db)

≤70

≤70

≤70

Dehydration Factor(G)

300

300

300

Automatic Dosing Ports (ways)

8

8

8

Inlet Water Pressure(Mpa)

0.2-0.4

0.2-0.4

0.2-0.4

Inlet Pipe Diameter(mm)

DN20

DN20

DN20

Hot Water Pipe Diameter(mm)

DN20

DN20

DN20

Drain Pipe Diameter(mm)

DN65

DN65

DN65

Washing Drum Diameter×Depth(mm)

650×372

650×465

650×465

Drying Drum Diameter×Depth(mm)

750×560

757×675

850×640

Drying Drum Load Ratio(L)

240

300

360

Drying Drum Load Ratio

1:20

1:20

1:18

Main Motor Power(KW)

0.20

0.20

0.37

Fan Motor Power(KW)

0.20

0.20

0.55

Heating Method

Electric/Gas Heating

Electric/Gas Heating

Electric/Gas Heating

Rated Voltage(v)

380

380

380

Heater Power(KW)

9

13.5

18

Width(mm)

835

835

940

Depth(mm)

1060

1190

1300

Height(mm)

2080

2080

2210

Total Weight(kg)

485

550

620
