Drying Parameter Design for Down Jackets in Central Laundries

The previous article has introduced the washing process of the dark-colored and light-colored down jackets. After washing, drying is needed for the recovery of fluffiness. Then, how to achieve highly efficient drying? During our on-site visit to Huanxixiong Central Laundry Factory, we learned that they adopt a dual mode of waste heat pre-drying and professional drying for safe and efficient drying.

Pre-Drying

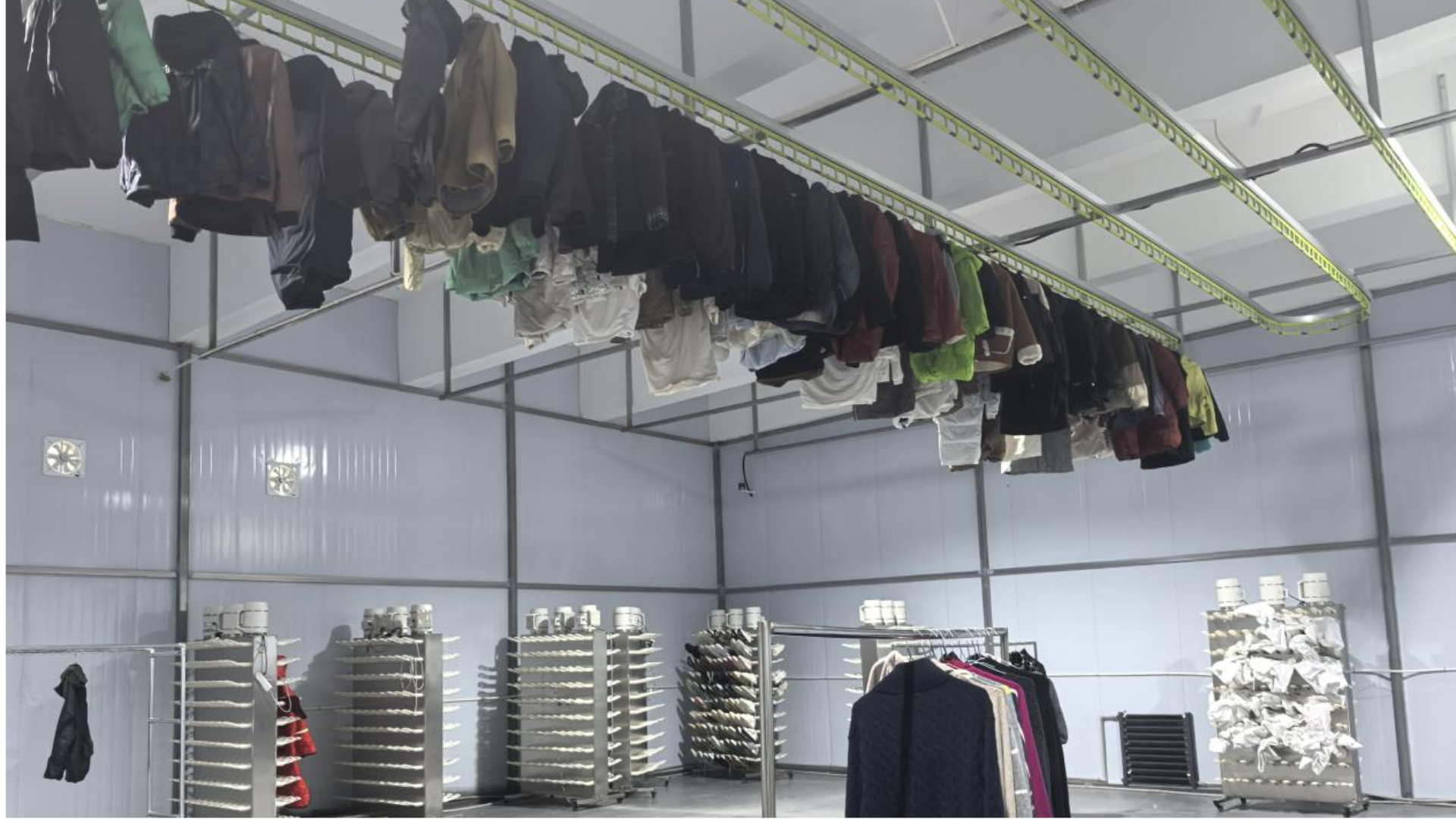

The washed down jackets are first sent to the drying room. The drying room collects the residual heat discharged from the dryer and uses the residual heat to pre-dry down jackets at a low temperature. This gradually removes the excessive moisture on the surface. This avoids the shrinkage of the fabrics and the damage to down caused by direct high temperature. Pre-drying not only greatly improves the efficiency of formal drying and reduces energy consumption, but also protects the fabric coating, printing, and down fibers by shortening the drying time and lowering the drying temperature. After the pre-drying, the down jackets should be sent to the Kingstar intelligent dryer for drying to get fluffy and soft down and avoid clumping and hardening.

Four Stages of Drying and Parameters

How to take advantage of the Kingstar intelligent dryer for highly efficient drying of down jackets? The drying of down jackets generally goes through four stages. This article will give you a detailed introduction to the four stages of drying and their parameters.

● Stage 1 of the Drying

Control mode: Time control

Control temperature source: Inlet air temperature

Drum speed: 40 rpm

Drum left rotation time: 30 s

Drum right rotation time: 30 s

Inlet air temperature setting: 50 ℃

Outlet air temperature setting: 50 ℃

Inlet air heating cut-off temperature: 55 ℃

Outlet air heating cut-off temperature: 55 ℃

Heating differential: 2 ℃

Temperature detection: Off

Minimum drying time: 1100 s

Maximum drying time: 1300 s (In time control mode, drying runs according to the maximum drying time.)

The above is the first drying stage. After stage 1 is completed, it will automatically enter stage 2.

● Stage 2 of the Drying

Control mode: Temperature control

Control temperature source: Outlet air temperature

Drum speed: 40 rpm

Drum left rotation time: 30 s

Drum right rotation time: 30 s

Inlet air temperature setting: 50 ℃

Outlet air temperature setting: 50 ℃

Inlet air heating cut-off temperature: 55 ℃

Outlet air heating cut-off temperature: 55 ℃

Heating differential: 2 ℃

Temperature detection: On

Humidity activation temperature: 90 ℃

Humidity setting: 5%

Humidity judgment time: 10 s

Minimum drying time: 300 s (When all other conditions are met, the system runs for the minimum drying time before entering the next stage.)

Maximum drying time: 600 s (If other conditions are not met, the system continues running and enters the next stage after reaching the maximum drying time.)

After stage 2 is completed, the system will automatically enter drying stage 3.

● Stage 3 of the Drying

Control mode: Temperature control

Control temperature source: Outlet air temperature

Drum speed: 40 rpm

Drum left rotation time: 30 s

Drum right rotation time: 30 s

Inlet air temperature setting: 50 ℃

Outlet air temperature setting: 50 ℃

Inlet air heating cut-off temperature: 55 ℃

Heating differential: 2 ℃

Temperature detection: On

Humidity activation temperature: 90 ℃

Humidity setting: 5%

Humidity judgment time: 10 s

Minimum drying time: 300 s

Maximum drying time: 600 s

After stage 3 is completed, the system will enter the final cooling stage.

● Stage 4 of the Drying

Control mode: Time control

Cooling time: 300 s

Drum speed: 40 rpm

Drum left rotation time: 30 s

Drum right rotation time: 30 s

Outlet air cooling temperature setting: 50 ℃

Cooling over-temperature alarm temperature setting: 50 ℃

Conclusion

The above are the parameter settings for drying down jackets using the Kingstar intelligent dryer. Once the parameters are correct, the dryer will automatically complete the drying.

Q&A

Q1: What is the design of the drying room of Huanxixiong Central Laundry Plant?

A1: The exhaust outlet of the dryer is directly connected to the drying room, and mesh screens are put on it to avoid the lint from entering the drying room. The residual heat can be used for drying. Some thin and sensitive clothes can be directly dried in the drying room. The drying time of clothes like down jackets can be greatly shortened after being pre-dried in the drying room.

Q2: How many heating methods does a Kingstar dryer have?

A2: Kingstar dryers have three heating methods: electric, steam, and gas.

Q3: Can the Kingstar 100kg washing machine and 100kg dryer achieve one-to-one drying?

A3: Yes. The 100kg Kingstar washer and 100kg Kingstar dryer support one-to-one operation for high efficiency and speed.
