Industrial Dryer
Product overview

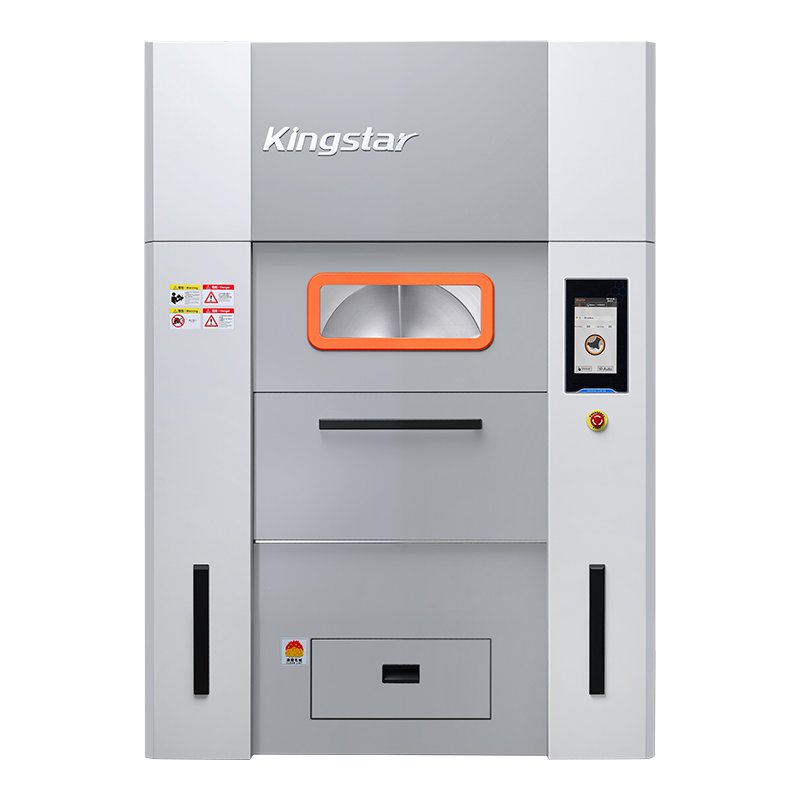

The Kingstar electric industrial dryer is suitable for hotel laundries, hospital laundries, and self-service laundromats. It can handle large loads of linens in a single cycle and offers fast drying speeds.
Application
-
Laundry
-
Dry cleaner
-
Self-service
laundry
- 40kg
- 60kg
- 100kg
(86)+86-13917089379
Technical Characteristics
-
① Advanced Intelligent Drying System
Equipped with a 10-inch full-color touchscreen, the system offers 99 built-in, customizable drying programs tailored to various fabric types and load sizes—delivering flexible,user-friendly operation. -
② Sensor-Based Humidity Control Technology
Utilizing real-time moisture monitoring, the system automatically adjusts drying duration to prevent over-drying, protect fabric integrity, and improve energy efficiency. -
③ High Efficiency
The 100kg dryer can directlyload 100kg of towels, with a steam pressure of over 5kg, drying within 40minutes, ensuring high efficiency and speed. -
④ Loading Capacity Design
Designed with a 1:20 loading capacity ratio, the inner drum is made of 304 stainless steel material. -
⑤ Convenient Door Design
Features an upper andlower door opening design with a door diameter of 1 meter, making loading and unloading towels effortless and time-saving. -
⑥ High-Power Heating Design
Features ahigh-power heating system with an added insulation layer on the outer cylinder, ensuring quick temperature rise, good insulation effect,andimproved drying efficiency. -
⑦ Imported Electrical Components
All electrical components are imported brands, including Mitsubishi inverters, Schneider contactors, and all wires, plugs, and bearings are also imported brands. -
⑧ Multiple Heating Methods
Offers three heating methods: steam heating, electricheating,and gas heating.
 |
 |
 |
-
Simple operation -
Intelligentize -
Humanized design -
High quality
Technical Data
|
Specification Model |
SDR-2040 |
SDR-2060 |
SDR-2100 |
|
Drum Diameter（mm) |
1140 |
1260 |
1460 |
|
Drum Depth（mm) |
875 |
980 |
1200 |
|
VOLUME（L) |
800 |
1220 |
2000 |
|
VOLUME Load Ratio |
20 |
20 |
20 |
|
Main Motor Power（KW） |
1.1 |
1.5 |
2.2 |
|
Fan Motor Power（KW） |
2.2 |
3 |
5.5 |
|
Rated Voltage（v） |
380 |
380 |
380 |
|
Heater Power（KW） |
36 |
48 |
81.6 |
|
Steam Pressure(MPa) |
0.6 |
0.6 |
0.6 |
|
Width（mm) |
1360 |
1480 |
1680 |
|
Depth（mm) |
1580 |
1765 |
2025 |
|
Height（mm) |
1955 |
2115 |
2355 |
|
Weight（KG) |
1000 |
1150 |
1400 |
About us
Craftsman spirit, excellence, quality products are the bridge to the world!
Jiangsu Chuandao Washing Machinery Technology Co., Ltd. is a professional China Industrial Dryer Suppliers and Industrial Dryer Manufacturers. Shanghai Chuandao was established in March 2001, Kunshan Chuandao was established in May 2010, and Jiangsu Chuandao was established in February 2019. Now the total area of Chuandao enterprise is 130,000 square meters and the total construction area is 100,000 square meters. After nearly 20 years of development, CLM has grown into a leading enterprise in China's laundry industry.
Honor & Qualification
Choose comes from trust, and cooperation
comes from honesty.
NEWS
Message Feedback
Industry Knowledge Expansion
1. Why choose 40kg Kingstar industrial dryer?
Excellent quality assurance
As a well-known brand, Kingstar 40kg Kingstar industrial dryer enjoys a good reputation in the market. Its quality assurance system includes strict control from raw material procurement to production and manufacturing to ensure that each dryer meets high standards of quality requirements. Users choose Kingstar not only because of its brand awareness, but also because of their trust in quality.
Energy efficient
The 40kg Kingstar industrial dryer adopts advanced energy-saving technologies, such as efficient heat recovery system and intelligent temperature control technology, to minimize energy consumption. In today's context of increasing emphasis on environmental protection and energy conservation, choosing energy-saving equipment can not only reduce costs, but also contribute to the sustainable development of enterprises.
Versatility
This industrial dryer has a flexible design and is not only suitable for large laundry factories and hotels, but can also meet the needs of different scenarios such as hospitals, schools, and factories. Moreover, it also supports drying of a variety of clothing types, including cotton, wool, synthetic fibers, etc., providing users with more choices and convenience.
2. What are the key features of the 40kg Kingstar industrial dryer?
Large capacity design
The 40kg large-capacity design of the 40kg Kingstar industrial dryer enables it to process a large amount of clothing at one time, greatly improving production efficiency. Especially during peak periods, this large-capacity design can help users complete drying tasks faster and meet customer needs.
Intelligent control system
The dryer is equipped with an advanced intelligent control system that can accurately control parameters such as drying temperature, time and humidity. Through intelligent control, users can easily adjust the drying program to suit different types and thicknesses of clothing, ensuring consistency and quality of drying results.
Durable materials
The 40kg Kingstar industrial dryer is manufactured with durable materials and high-quality components for excellent durability and corrosion resistance. This durability can not only reduce the machine's failure rate and the number of repairs, but also extend the service life of the machine, saving maintenance costs and time for users.
Safety performance
The dryer has complete safety protection devices, such as overheating protection, circuit protection and other functions, which can effectively prevent safety accidents caused by operating errors or other reasons. Users can use this dryer with confidence without worrying about losses and risks caused by safety issues.
3. How does the 40kg Kingstar industrial dryer improve production efficiency?
Quick drying cycle
The 40kg Kingstar industrial dryer adopts advanced heating technology and efficient drying system, which can greatly shorten the drying cycle. Compared with traditional drying equipment, it can complete drying tasks faster and improve production efficiency and production capacity.
Humanized design
The operation interface of this dryer is simple and intuitive, with clear operating instructions, making it easy to operate and master. Even novice operators can easily master the operating skills, reducing the occurrence of operating errors and production accidents, and further improving production efficiency.
energy-saving design
The 40kg Kingstar industrial dryer uses energy-saving technology and optimized drying procedures to minimize energy consumption. By reducing energy consumption and operating costs, users can save a lot of production costs and improve the economic benefits and competitiveness of enterprises.
reliability and stability
This dryer has undergone strict quality control and testing and has excellent reliability and stability. Even under long-term high-intensity use, it can still maintain stable performance and working status, reducing breakdowns and maintenance time, and further improving production efficiency and production continuity.
